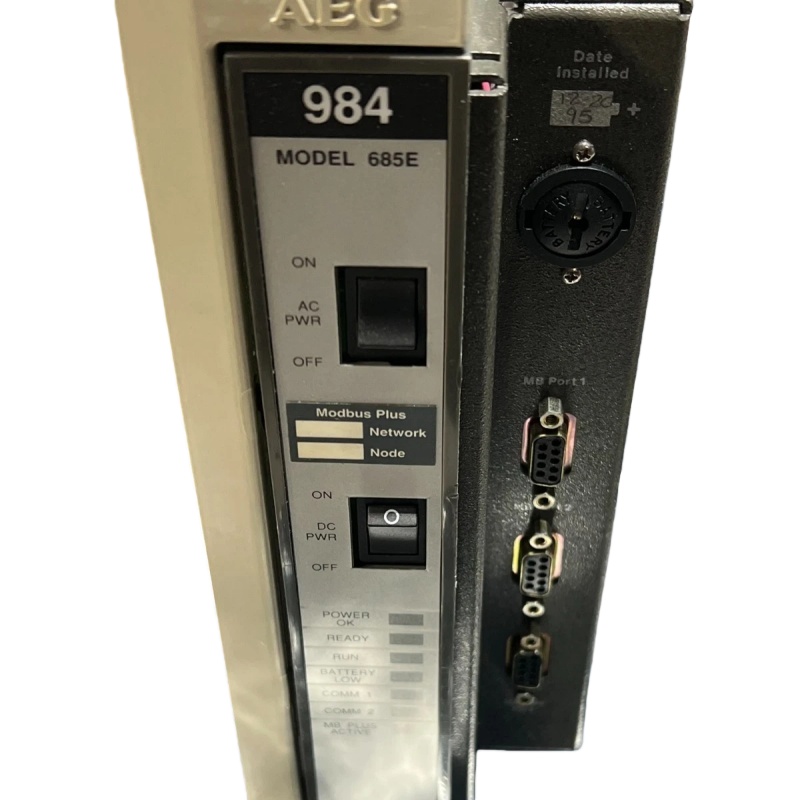

SCHNEIDER PC-E984-685 logic controller

SCHNEIDER PC-E984-685 is an industrial-grade programmable logic controller (PLC) launched by Schneider Electric. It is mainly used in automated production lines, packaging machinery, material handling, and environmental control systems. Below are the main technical specifications and features of this product:

Core Technical Specifications

• Model: PC-E984-685
• Series: Modicon Momentum / Premium Series
• CPU: 32-bit PowerPC 604e or high-performance embedded processor
• Memory: 2 MB RAM, 2 MB Flash
• Input Voltage: 24 V DC
• Power Consumption: Approx. 5 W input, approx. 4 W output
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Dimensions: Approx. 140 mm × 98 mm × 38 mm
• Communication Interfaces: Supports multiple industrial protocols, including Ethernet, RS-232, RS-485, Modbus RTU, Modbus TCP, PROFIBUS DP, and EtherNet/IP.

Key Features and Advantages

• High-Performance Processing: Equipped with a high-performance CPU and large-capacity memory, supporting millisecond-level scan cycles and capable of handling complex logic, sequencing, and motion control tasks.
• Powerful Communication Capabilities: Multiple communication ports enable easy integration into various industrial networks for seamless device interconnection.
• Modular Design: Supports modular expansion, allowing the addition of different I/O modules and functional modules according to application requirements.
• Reliability and Safety: Features fault diagnostics, alarm functions, and a highly reliable hardware design, making it suitable for harsh industrial environments.

Application Areas

This controller is widely used in manufacturing, energy management, building automation, packaging machinery, conveyor control, and temperature and humidity regulation, making it a high-end control solution for industrial automation.
