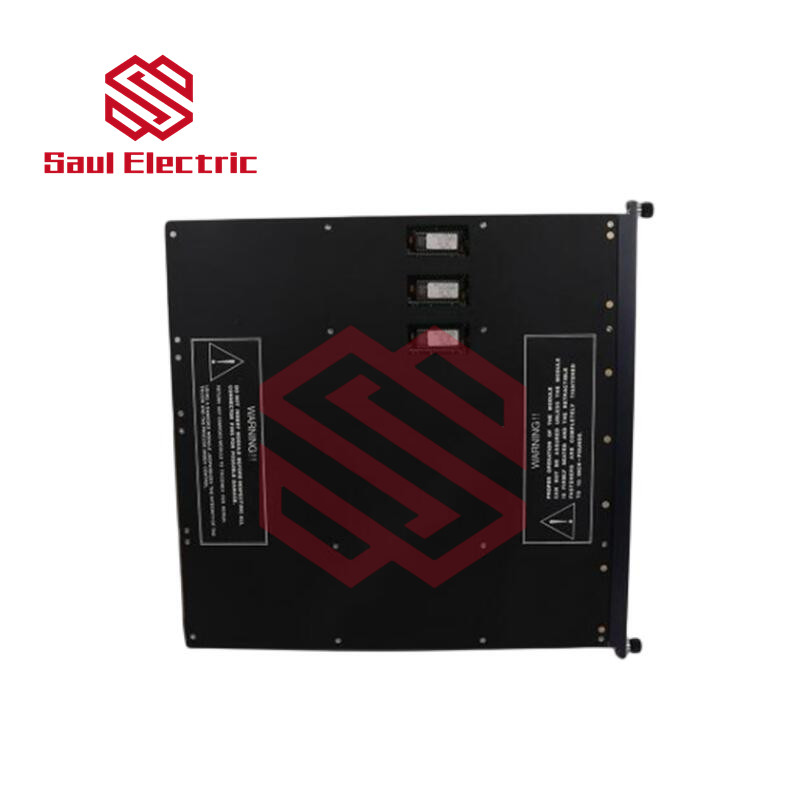

TRICONEX 3502E safety analog input module

TRICONEX 3502E

The Triconex 3502E is a safety analog input module from the Tricon v9/v10/v11 series, designed for critical safety applications in industrial control systems. Below are its key technical parameters:

TRICONEX 3502E Technical Specifications:

1. Module Type:

• • Analog Input (AI) Module (Safety-rated)

2. Input Channels:

• • 16 channels (single-ended or differential configurable)

3. Input Signal Types:

• • Voltage: ±10V DC, 0-10V DC, 1-5V DC
  • Current: 4-20mA, 0-20mA (with external resistor for current-to-voltage conversion)

4. Resolution:

• • 16-bit (high-precision conversion)

5. Isolation:

• • Channel-to-channel isolation for noise immunity and safety

6. Accuracy:

• • Typically ±0.1% of full scale (depending on calibration)

7. Update Rate:

• • Configurable, typically 10ms per channel (varies based on system configuration)

8. Diagnostics & Safety Features:

• • Open-circuit detection
  • Over-range/under-range detection
  • Hardware fault detection (supports TMR – Triple Modular Redundancy)

9. Power Supply:

• • 24V DC (typical for Triconex systems)

10. Communication Interface:

• • Integrates with Tricon Controller (MP, Chassis) via TriBus

11. Certifications & Compliance:

• • IEC 61508 (Functional Safety)
  • SIL 3 (Safety Integrity Level) capable
  • ATEX/IECEx (for hazardous environments, if applicable)

12. Operating Temperature:

• • -40°C to +70°C (industrial-grade)

13. Mounting:

• • Installs in Tricon V9/V10/V11 chassis

Applications:

• Safety-critical process control (oil & gas, chemical, power plants)
• Emergency Shutdown Systems (ESD)
• Fire & Gas Detection Systems

Main Brand:

ABB      Allen-Bradley      Alstom      Bently         Emerson     Foxboro

GE       MOOG       Schneider       Woodward       HIMA        Honeywell

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

First hand source // Quality assurance // Fast delivery time // Feel free to purchase with confidence

GE DS200TCTGG1A FF    GE DS200QTBAG1A     GE DS200RTBAG2A HC

GE DS200TBQCG1 ABB    GE DS200TCRAG1A     GE DS200TBCAG1A

GE DS200PCCAG4 ADB    GE DS200TBQAG1A     GE DS200EXPSG1ACB

GE 531X307LTBAKGI     GE DS200CTBAG1 ADD  GE DS200QTBAG1A DC

What is a DCS?

A Distributed Control System (DCS) is a sophisticated, computer-based control system designed to automate, monitor, and manage complex industrial processes. It is widely used in large-scale industrial facilities such as refineries, power plants, chemical plants, and paper mills, where precision, reliability, and scalability are critical.

How Does a DCS Work?

A DCS is composed of several interconnected components that work seamlessly to ensure efficient process control. Here’s a breakdown of its key elements:

1. Controllers:
   These are the “brains” of the system. Controllers receive data from sensors, process it using pre-programmed logic, and send output signals to actuators to maintain optimal process conditions.
2. Sensors:
   Sensors act as the “eyes and ears” of the system, measuring critical physical parameters such as temperature, pressure, flow rate, and level. This real-time data is essential for accurate control.
3. Actuators:
   Actuators are the “muscles” of the system. They execute physical actions based on controller commands, such as opening/closing valves, starting/stopping motors, or adjusting dampers.
4. Operator Stations:
   These serve as the human-machine interface (HMI), allowing operators to monitor the process, adjust setpoints, and troubleshoot issues. Modern DCS systems often feature intuitive graphical interfaces for ease of use.
5. Communication Network:
   The backbone of the DCS, this network connects all components, enabling seamless data exchange and coordination. It ensures that every part of the system works in harmony, even across large industrial sites.

Why is a DCS Important?

• Centralized Control with Distributed Execution: A DCS allows for centralized monitoring while distributing control functions across multiple controllers, reducing the risk of system-wide failures.
• Scalability: It can easily expand to accommodate growing operational needs.
• Reliability: Redundant systems and fail-safes ensure continuous operation, even in critical environments.
• Efficiency: Optimizes processes, reduces waste, and improves overall productivity.

==========================================================================================

For more TRICONEX products, please click here to view

TRICONEX Company Profile

TRICONEX is a renowned U.S. manufacturer of industrial safety control systems, founded in 1983 and now a brand under Schneider Electric.

Core Expertise

The company specializes in:

• ✅ Safety Instrumented Systems (SIS)
• ✅ Emergency Shutdown Systems (ESD)
• ✅ Critical control solutions

Key Industries Served

Widely used in high-risk sectors, including:

• ✅ Oil & Gas
• ✅ Chemicals
• ✅ Power Generation

Flagship Product

The Tricon Safety System is known for its 🔄 Triple Modular Redundancy (TMR) technology, ensuring:

• ✅ Fault tolerance
• ✅ Safe industrial operations

 Certifications & Global Reach

• ✅ Rigorous safety certifications (e.g., SIL ratings)
• ✅ Global service network

 Leadership

TRICONEX is a trusted leader in process safety solutions, delivering reliability and innovation worldwide.
