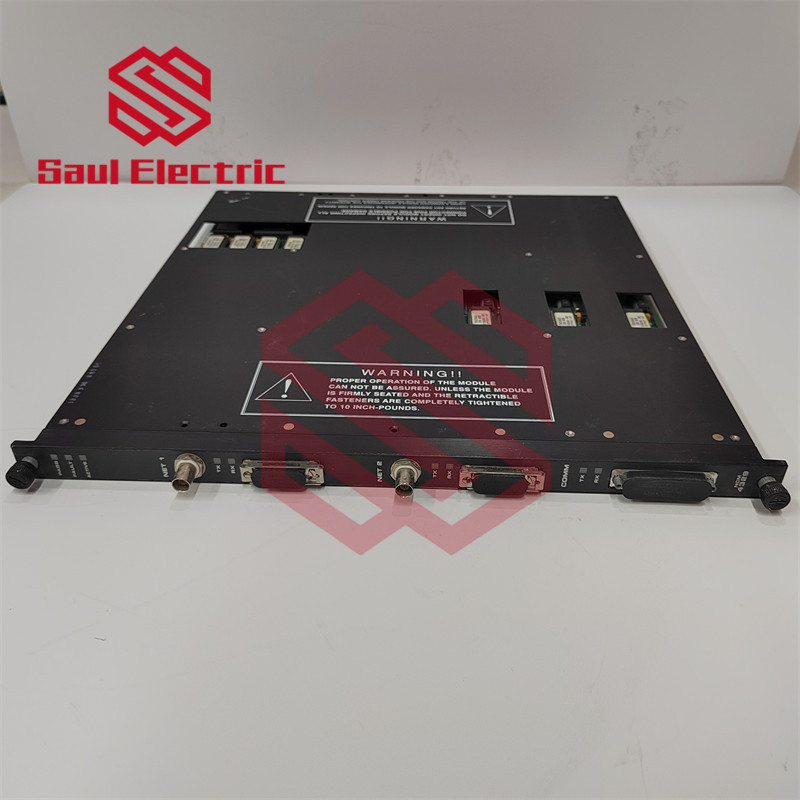

TRICONEX 4329 safety instrumented system (SIS)

The Triconex 4329 is part of the Tricon safety instrumented system (SIS) by Schneider Electric, designed for high-integrity process control and emergency shutdown applications. Below are the key technical parameters for the Triconex 4329 module:

Triconex 4329 Technical Specifications:

1. Module Type:

• Digital Input Module (for safety-critical applications).

2. Input Channels:

• Typically 16 or 32 digital inputs (depending on configuration).
• Supports dry contact (voltage-free) or wet contact (sourced) inputs.

3. Input Voltage Range:

• Nominal Voltage: 24V DC (common for industrial applications).
• Acceptable Range: Typically 10-30V DC (varies based on model).

4. Isolation & Safety:

• Optical isolation between field inputs and internal logic.
• Fault-tolerant design (TMR – Triple Modular Redundancy).

5. Response Time:

• Typically < 10 ms per channel (fast response for safety systems).

6. Communication:

• Interfaces with the Tricon main processor via a backplane.
• Supports Tricon communication protocols (e.g., TriStation for configuration).

7. Certifications & Compliance:

• IEC 61508 (Functional Safety).
• SIL 3 (Safety Integrity Level) capable.
• CE, ATEX (for hazardous environments, if applicable).

8. Operating Temperature:

• -40°C to +70°C (industrial-grade ruggedness).

9. Power Consumption:

• Typically < 5W per module (varies based on configuration).

10. Mounting & Compatibility:

• Designed for Tricon chassis (e.g., 3008, 4008 series).
• Hot-swappable (in supported configurations).

Applications:

• Emergency Shutdown Systems (ESD).
• Fire & Gas Safety Systems.
• Critical process control in oil & gas, chemical, and power plants.
