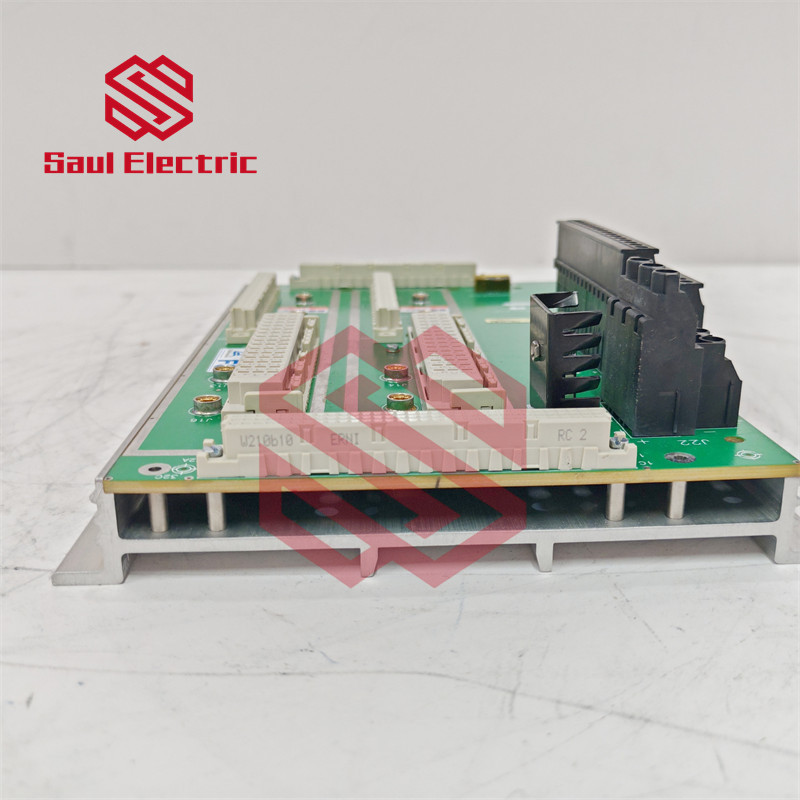

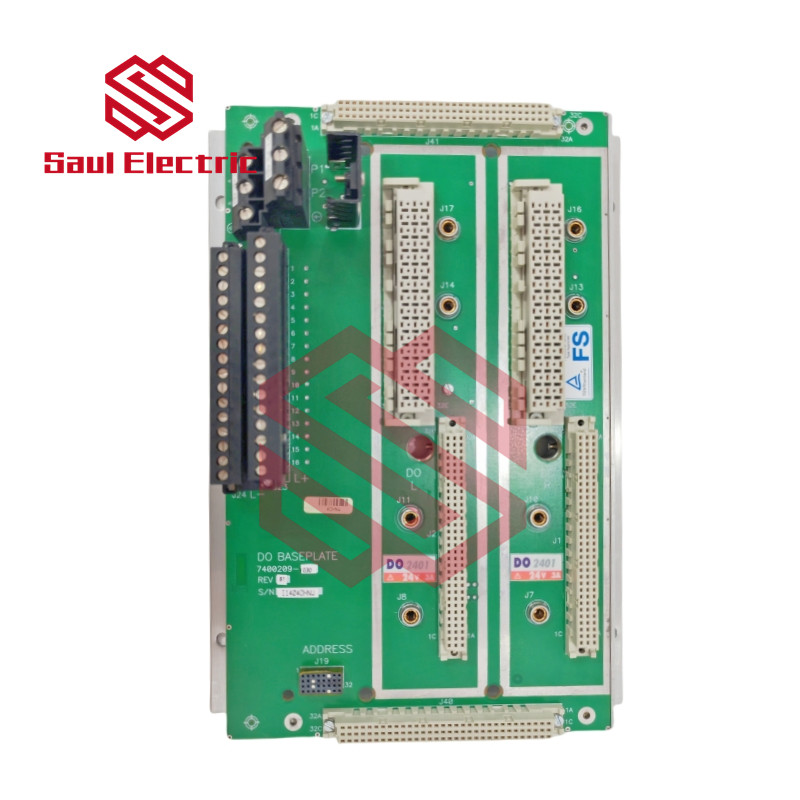

TRICONEX DO2401

The Triconex DO2401 is a Digital Output Module designed for high-reliability safety systems such as Tricon and Trident controllers. Below are its detailed technical specifications:

Triconex DO2401 – Digital Output Module – Technical Parameters

General Information:

• Manufacturer: Schneider Electric (formerly Triconex)
• Model: DO2401
• Type: Digital Output Module (Triple Modular Redundant – TMR)
• Compatibility:
  • Tricon v9, v10, v11
  • Trident Safety Systems

Electrical Specifications:

• Output Type: 24V DC Sourcing (Triplicated Outputs)
• Number of Channels: 8 channels (Independently controllable)
• Output Current per Channel:
  • 0.5A (Continuous)
  • 2A (Inrush, <100ms)
• Output Voltage Range: 20V – 30V DC
• Load Compatibility:
  • Solenoid valves, relays, contactors, lamps, etc.
• Isolation: 1500V AC (Channel-to-channel & field-to-logic isolation)

Redundancy & Safety Features:

• Triple Modular Redundancy (TMR): Three independent output circuits per channel for fault tolerance.
• Voting Logic: 2-out-of-3 voting for fail-safe operation.
• Diagnostics:
  • Open-load detection
  • Short-circuit protection
  • Overcurrent shutdown
• Hot-Swappable: Supports online replacement without system shutdown.

Environmental & Mechanical Specifications:

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Storage Temperature: -50°C to +85°C (-58°F to +185°F)
• Humidity: 5% to 95% (non-condensing)
• Vibration/Shock Resistance: Complies with IEC 60068-2-6 (vibration) & IEC 60068-2-27 (shock)
• Mounting: Rack-mounted (Triconex chassis)

Certifications & Compliance:

• IEC 61508 (Functional Safety)
• SIL 3 (Safety Integrity Level)
• CE, ATEX, UL, CSA (Depending on region)

Typical Applications:

• Emergency Shutdown Systems (ESD)
• Fire & Gas Systems (FGS)
• Turbine Control & Bypass Systems
• Process Automation in Oil & Gas, Power, Chemical Plants

Comparison with Other Triconex DO Modules:
