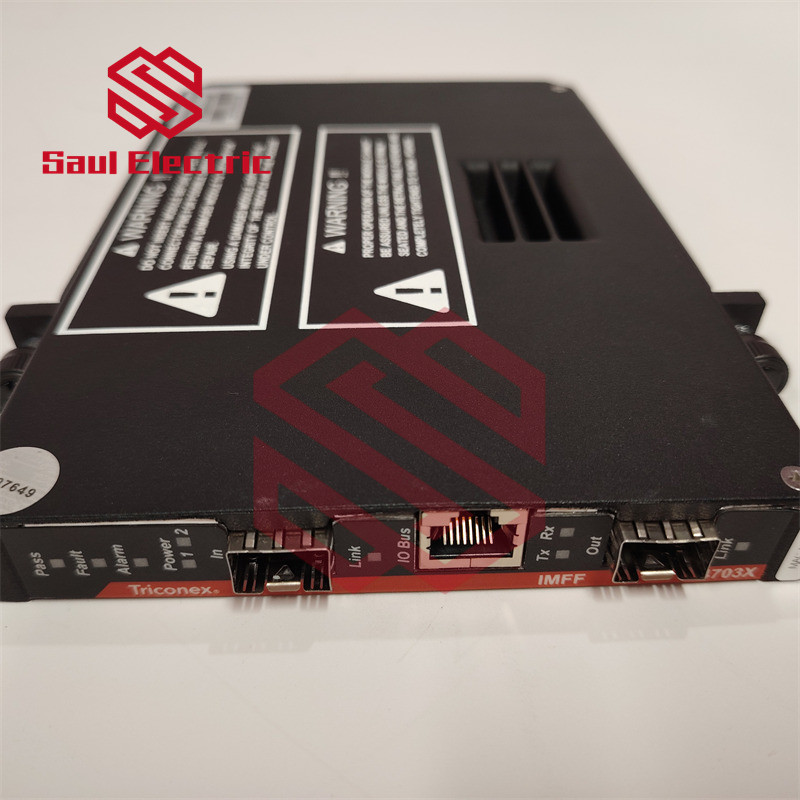

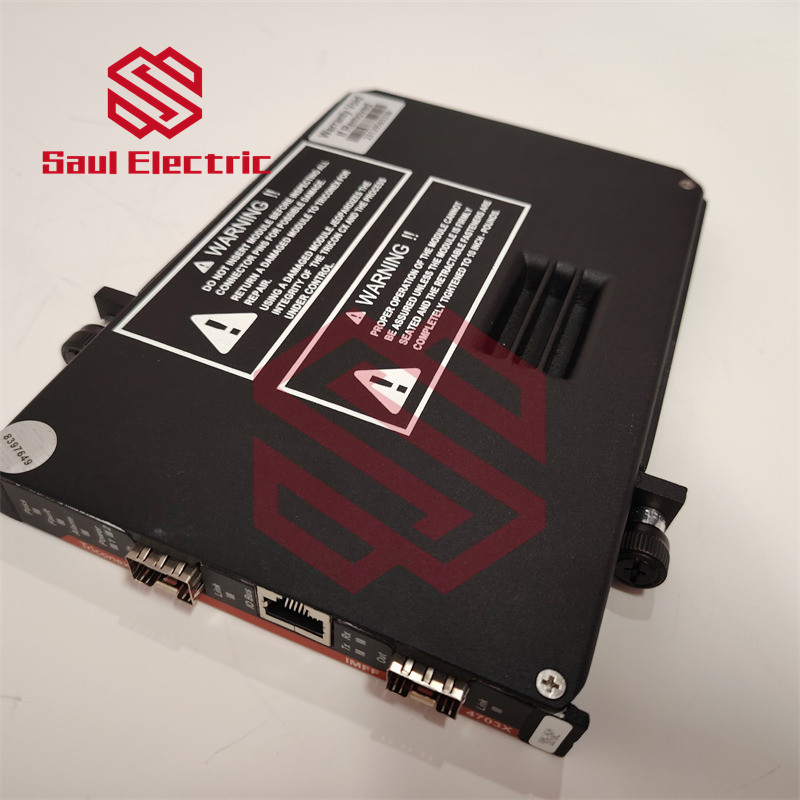

TRICONEX IMFF4703X
The TRICONEX IMFF4703X is a Fiber Optic Interface Module designed for use in Triconex safety systems, particularly for communication over fiber optic networks. Below are its key technical parameters:
General Specifications:
- Manufacturer: Schneider Electric / Triconex
- Model: IMFF4703X
- Type: Fiber Optic Interface Module
- Application: Used in safety-critical systems for high-speed, noise-immune communication.
Communication & Connectivity:
- Interface Type: Fiber optic (multimode)
- Data Rate: Up to 10 Mbps (varies based on configuration)
- Protocol Support: Triconex proprietary protocols (compatible with TriStation and other Triconex engineering tools)
- Connector Type: Typically ST or SC connectors (depends on variant)
Electrical & Environmental:
- Operating Voltage: Typically 5V DC (supplied via the Triconex backplane)
- Power Consumption: Low power (exact value depends on configuration)
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Humidity Range: 5% to 95% (non-condensing)
- Certifications: Compliant with IEC 61508 (SIL 3) for safety applications.
Mechanical & Installation:
- Mounting: Installed in a Triconex chassis (e.g., Trident, Tricon)
- Dimensions: Standard Triconex module size (varies, typically ~150mm x 30mm x 100mm)
- Weight: Approx. 200-300g (depends on configuration)
Key Features:
- High Noise Immunity: Fiber optic communication eliminates EMI/RFI interference.
- Redundancy Support: Can be used in redundant configurations for fault tolerance.
- Hot-Swappable: Allows replacement without system shutdown (if supported by the chassis).
- Diagnostic LEDs: Provides status indicators for communication and faults.
Typical Applications:
- Safety Instrumented Systems (SIS)
- Process control in oil & gas, chemical, and power plants
- High-noise industrial environments requiring reliable communication
Main Brand:
ABB Allen-Bradley Alstom Bently Emerson Foxboro
GE MOOG Schneider Woodward HIMA Honeywell
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
Frequently Asked Questions (FAQ)
Delivery & Shipping
Q: What is the earliest time you can make delivery?
A: Delivery is processed immediately upon receipt of payment.
Returns & Warranty
Q: If the product doesn’t work, can it be returned?
A: Yes, we provide a one-year warranty for all products.
Product Availability
Q: How easy is it to obtain items?
A: These items are no longer in continuous production, making supply limited. However, SAUL specializes in sourcing hard-to-find products. While lead times vary, the average delivery window is 5-7 business days.
Understanding PLC
A programmable logic controller (PLC) is an industrial control computer used for automated electrical and mechanical systems. It consists of programmable microprocessors, input/output (I/O) modules, communication interfaces, and power supply components. The PLC module is an important component of the PLC system, used to expand the functionality and performance of the PLC.
- Digital I/O module: used to process digital signals from devices such as sensors and switches, and send digital signals to devices such as actuators and indicators.
- Analog I/O module: used to process analog signals from sensors and transmitters, and send analog signals to devices such as actuators and indicators.
- Communication module: used to connect PLC to other devices, such as computers, human-machine interfaces (HMI), and remote I/O devices.
- Specialized module: used to perform specific functions such as motion control, PID control, and image processing.
==========================================================================================
