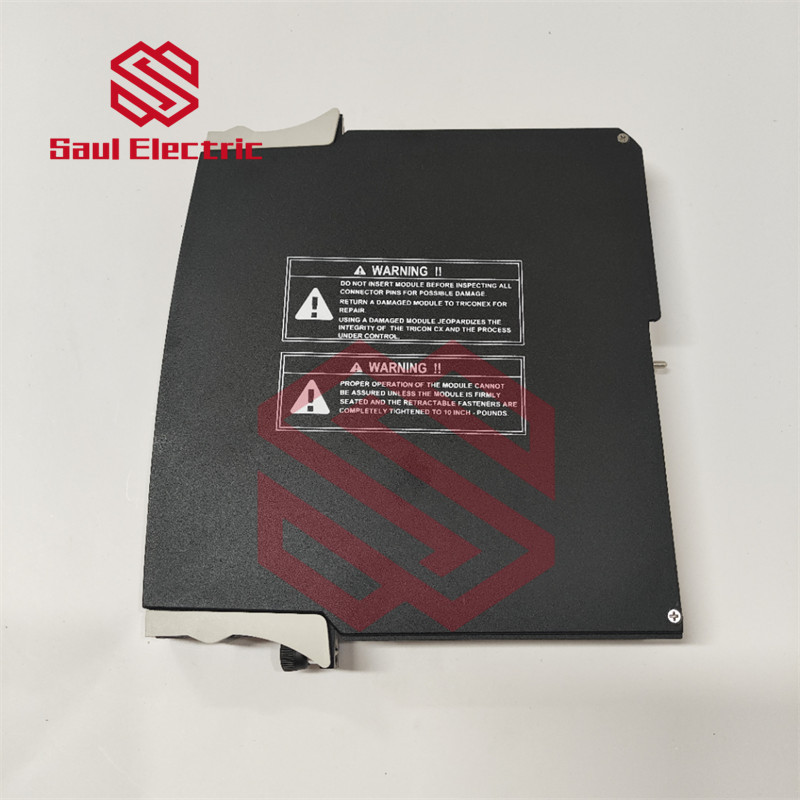

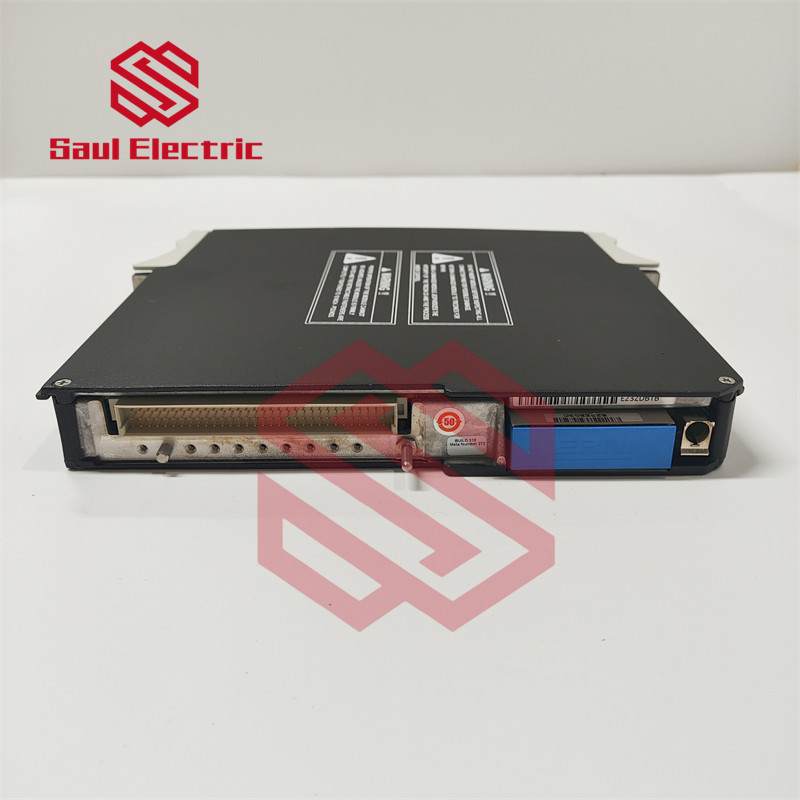

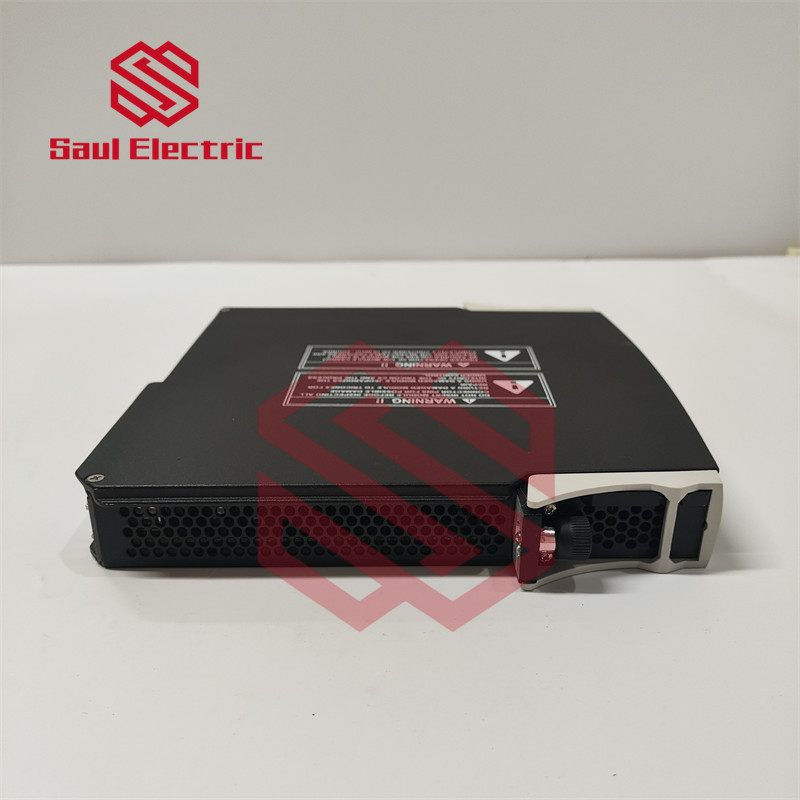

TRICONEX RXM4200 Remote I/O Module

The TRICONEX RXM4200 is a Remote I/O Module designed for use within the Triconex safety instrumented system (SIS) framework, particularly in critical applications requiring high reliability and fault tolerance. Below are the key technical parameters of the RXM4200 module:

General Specifications:

• Manufacturer: TRICONEX (Schneider Electric)
• Model: RXM4200
• Type: Remote I/O Module (for Safety Systems)
• Compatibility: Part of the Tricon or Trident systems

Communication & Protocol:

• Communication Interface: Supports TriBus (Tricon Communication Bus)
• Protocol: Proprietary Triconex communication protocol (for high-integrity data exchange)
• Remote I/O Capability: Integrates with Tricon controllers for distributed I/O applications

I/O Characteristics:

• Input/Output Type: Digital or Analog (depending on configuration)
• Isolation: High-grade electrical isolation for noise immunity
• Fault Tolerance: Supports fault-tolerant I/O processing

Environmental & Electrical Specifications:

• Operating Temperature Range: Typically -40°C to +70°C (industrial-grade)
• Humidity Tolerance: Up to 95% non-condensing
• Power Supply: Typically 24V DC (varies based on system configuration)
• Power Consumption: Depends on configuration (refer to datasheet for exact values)

Safety & Certifications:

• Safety Integrity Level (SIL): Compliant with IEC 61508 / IEC 61511 (SIL 3 capable)
• Certifications: ATEX, FM, CSA (for hazardous environments, if applicable)
• Fault Detection: Built-in diagnostics for module health monitoring

Mechanical Specifications:

• Mounting: DIN rail or panel-mounted (varies by installation)
• Enclosure Rating: Typically IP20 (for control cabinet installation)

Typical Applications:

• Process Safety Systems (PSS)
• Emergency Shutdown Systems (ESD)
• Fire & Gas Systems (FGS)
• Critical Machinery Protection
