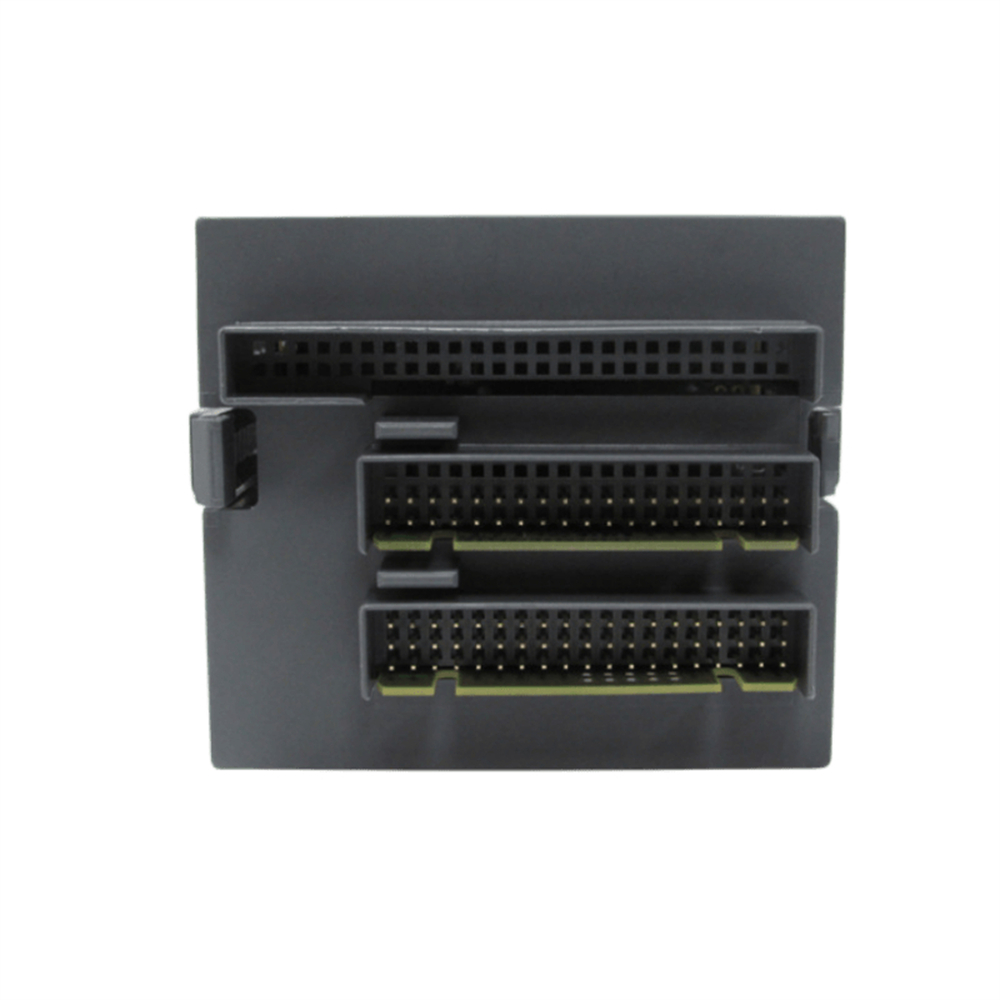

XYCOM XVME-500/4 Analog Input Module

XYCOM XVME-500/4 Analog Input Module – Technical Specifications

Module Type:
VMEbus XVME-500 series analog input module (single-slot, 6.5 in × 3.94 in, 165.1 mm × 100.0 mm)

Number of Channels

• Single-ended (SE) inputs: 32 channels (optional 16 channels)
• Differential (DI) inputs: 16 channels (optional 8 channels)

Input Voltage Range

• Unipolar: 0–10 V
• Bipolar: ±5 V, ±10 V
• Maximum input voltage: 20 V

Resolution / Accuracy:
12-bit A/D (approximately 0.024% FS)

Gain Settings

• XVME-500/1: resistor-selectable gains of 1, 10, 100, 1000
• XVME-500/2, /3: programmable gain, range 1–100

Input Impedance:
Approx. 100 kΩ (single-ended channels)

Power Supply:
+5 V DC (supplied via VME backplane)

Power Consumption:
Approx. 300 mA, 1.5 W (typical)

Operating Temperature:
-40 °C to +80 °C

Mechanical Dimensions:
Single slot, 165.1 mm × 100.0 mm × 28 mm (height)

Compliance:
VMEbus (IEEE 1014), A16:D16/D08(EO) DTB Slave, supports interrupt vectors

---

The XYCOM XVME-500/4 is suitable for industrial automation applications requiring high channel counts, wide input voltage ranges, and 12-bit analog signal acquisition accuracy.
