ABB 1SDA071193R1

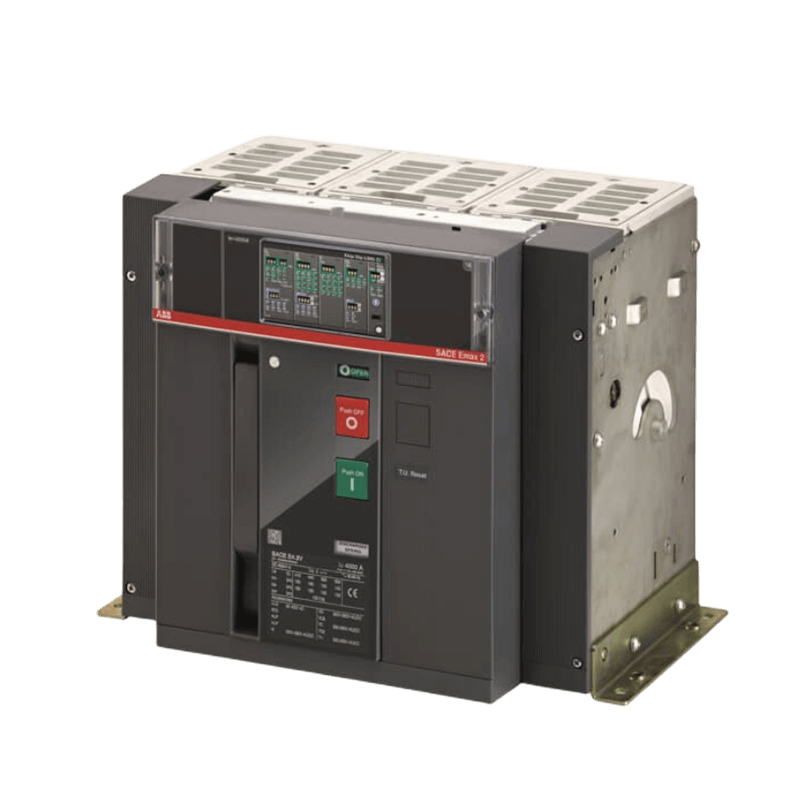

ABB 1SDA071193R1 is an ABB SACE Emax 2 series low-voltage air circuit breaker (ACB). The complete model designation is:
ABB E4.2N 4000 Ekip Dip LSIG 3P Fixed HR
(Product ID: 1SDA071193R1)
Product Description
The ABB 1SDA071193R1 is a fixed three-pole Emax 2 E4.2N air circuit breaker equipped with an Ekip Dip LSIG electronic trip unit. It is designed for high-power electrical distribution systems, providing protection against overload, short circuit, and earth fault conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Series | SACE Emax 2 |
| Model | E4.2N 4000 Ekip Dip LSIG |
| Product Code | 1SDA071193R1 |
| Breaker Type | Air Circuit Breaker (ACB) |
| Installation Type | Fixed |
| Number of Poles | 3 Pole |
| Rated Current (Iu) | 4000 A |
| Rated Voltage (Ue) | Up to 690 V AC |
| Frequency | 50/60 Hz |
| Trip Unit | Ekip Dip LSIG |
| Terminal Type | Rear Horizontal (HR) |
| Breaking Capacity (Icu at 400 V) | 66 kA |
| Auxiliary Contacts | 4 auxiliary contacts |
| Weight | Approx. 56 kg |
| Dimensions (W × H × D) | Approx. 384 × 371 × 270 mm |
Protection Functions (LSIG)
The Ekip Dip LSIG trip unit provides:
- L – Long-time protection: overload protection
- S – Short-time protection: selective short-circuit protection
- I – Instantaneous protection: fast short-circuit tripping
- G – Ground fault protection: earth fault protection
Application Areas
ABB 1SDA071193R1 is commonly used in:
- Industrial power distribution systems
- Electrical substations
- Data centers
- Power plants
- Oil & gas facilities
- Mining and heavy industry
- Large commercial buildings
Features & Advantages
- High current capability up to 4000 A
- Reliable protection for critical power networks
- Adjustable electronic protection settings
- High short-circuit withstand capability
- Compatible with ABB Emax 2 accessories and communication solutions
- Suitable for modern energy management systems
Conclusion
ABB 1SDA071193R1 (E4.2N 4000 Ekip Dip LSIG 3P F HR) is a heavy-duty 4000A Emax 2 air circuit breaker designed for demanding low-voltage power distribution applications. With advanced LSIG electronic protection and high interrupting capacity, it provides safe, reliable, and flexible protection for industrial electrical infrastructure.
