Abb 3BSE004191R1 PFTL 101B

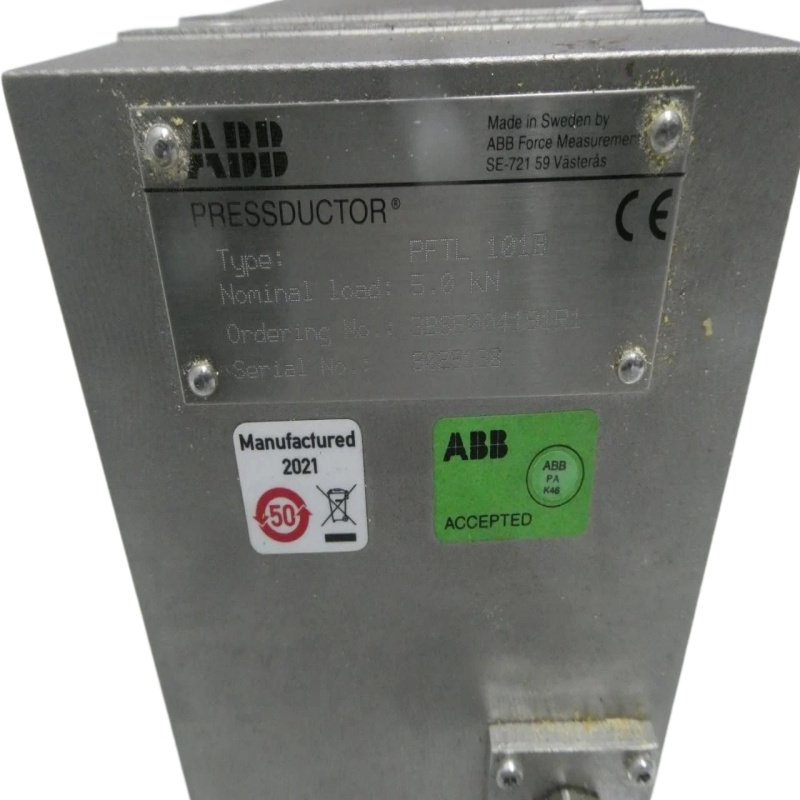

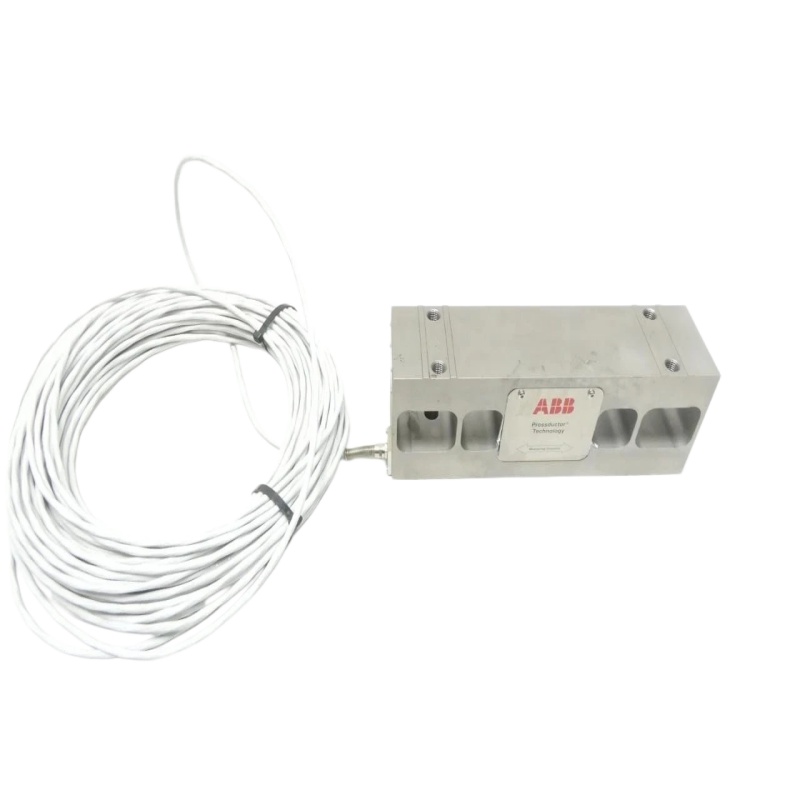

ABB 3BSE004191R1 (PFTL 101B-5.0kN) is a Pressductor® PillowBlock load cell designed for high-accuracy force and web tension measurement in demanding industrial environments. It is part of ABB’s PFTL 101 series and is widely used in paper, converting, textile, steel, and material-processing industries.
Product Overview
The PFTL 101B-5.0kN uses ABB’s patented Pressductor® magneto-elastic technology to measure force without relying on mechanical deformation. This design provides excellent measurement stability, high overload tolerance, and long service life even under severe operating conditions.
Product ID: 3BSE004191R1
Model: PFTL 101B-5.0kN
Product Type: PillowBlock Load Cell
Manufacturer: ABB
Country of Origin: Sweden
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Load | 5.0 kN |
| Measuring Direction | Horizontal |
| Permitted Lateral Load | 30 kN |
| Overload Capacity | 25 kN |
| Accuracy Class | 0.5% |
| Repeatability Error | < ±0.05% |
| Deflection | 0.015 mm |
| Spring Constant | 325 kN/mm |
| Technology | Pressductor® Magneto-elastic |
| Protection | Industrial-duty construction |
Key Features
- High-precision force and tension measurement
- Exceptional overload capacity (up to 500% of rated load)
- Minimal deflection for stable measurements
- Resistant to vibration, shock, moisture, and electrical interference
- Long operational life with virtually unlimited load cycles
- Suitable for harsh industrial environments
- Reliable operation at high machine speeds and low web tensions
Typical Applications
- Paper machines
- Calenders
- Coaters
- Winders and unwinders
- Steel strip processing lines
- Textile production equipment
- Film and foil converting machinery
- Industrial tension control systems
Working Principle
The PFTL 101B employs ABB’s Pressductor® technology, which is based on the magneto-elastic effect. When force is applied to the sensor, the magnetic properties of the sensing element change, generating a measurement signal. Because the measurement does not depend on mechanical strain gauges or significant physical deformation, the sensor offers superior reliability and resistance to overloads.
Conclusion
The ABB 3BSE004191R1 PFTL 101B-5.0kN is a robust industrial load cell engineered for accurate force and web tension measurement. Its combination of Pressductor® technology, high overload capability, excellent repeatability, and rugged construction makes it an ideal solution for demanding process-control applications where reliability and precision are critical.
