ABB 5SHY6545L0001 5SXE10-0181

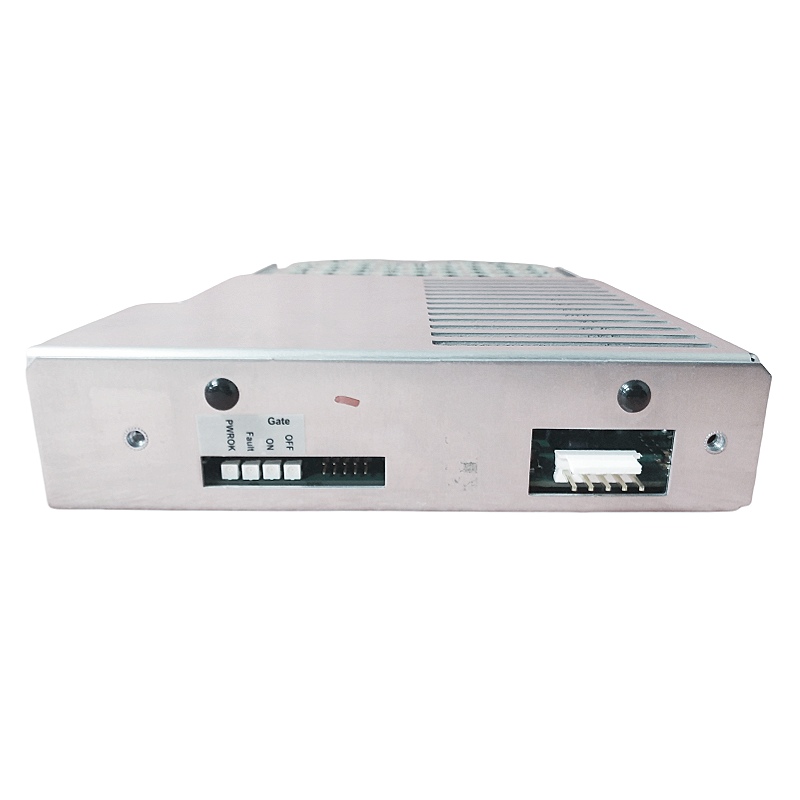

ABB 5SHY6545L0001 / AC10272001R0101 / 5SXE10-0181 Product Overview
| Model | Main Features | Typical Parameters | Application Scenarios |
|---|---|---|---|
| 5SHY6545L0001 | Integrated Gate-Commutated Thyristor (IGCT) module, part of ABB’s 5SHY high-voltage power electronics series | – Rated voltage: ≈ 4500 V – Rated current: ≈ 6500 A (the “6545” suffix implies 6545 A) – Switching frequency: ≈ 1.6 kHz (up to 1600 Hz) – Package: TO-247AB, supports both water and air cooling – Operating temperature range: -40 °C ~ +85 °C (industrial grade) – Maximum junction temperature: ≈ 175 °C |
– High-voltage DC conversion (HVDC) – Renewable energy inverters / grid-tied systems – High-power industrial drives and frequency converters – Railway traction and marine power systems |
| AC10272001R0101 | ABB control/communication board, commonly used in DCS, PLC, and robotic systems; provides multiple interfaces and redundancy features | – Dual RJ45 Ethernet ports, isolated serial port (COM4) – Supports CPU redundancy for improved system availability – Compatible with Profinet, EtherCAT, Modbus, and other industrial protocols |
– Distributed control systems (DCS) – Robotic control units – Fieldbus / PLC expansion modules |
| 5SXE10-0181 | Low-voltage power protection/control module, often used with the 5SHY series | – Rated voltage: ≈ 400 V – 575 V (configurable) – Rated current: up to ≈ 480 A – Protection class: IP20 (NEMA 1) – Multiple communication interfaces (Ethernet, fieldbus) |
– Low-voltage power distribution protection – Industrial field control – Used with high-voltage IGCT modules for full-chain power conversion |
Key Technical Highlights
High Power Density and Low Loss
Utilizing IGCT technology, the on-state voltage drop is ≤ 1.5 V, achieving an overall efficiency > 99%.
Low-inductance connections and compact packaging help minimize EMI and energy loss.
Reliability and Redundancy Design
The AC10272001R0101 provides CPU redundancy, dual Ethernet ports, and an isolated serial port — ideal for high-availability industrial systems.
Flexible Cooling Options
Supports both water and air cooling, adaptable for different power levels and thermal management requirements.
Wide Range of Applications
Proven performance across high-voltage DC transmission (HVDC), large industrial drives, renewable energy inverters, railway traction, and power systems.
Selection and Procurement Recommendations
- System Voltage Level:
For systems operating above 4.5 kV, use the 5SHY6545L0001 IGCT module.
For low-voltage power distribution, the 5SXE10-0181 is suitable for protection and control. - Cooling Solution:
For high-power applications (≥ 1 MW), water cooling is recommended.
For medium power levels (≈ 500 kW), air cooling is sufficient. - Control Interface:
If your existing network supports Profinet / EtherCAT, select AC10272001R0101 with the corresponding protocol support.
For redundancy or multi-protocol compatibility, choose a version with CPU redundancy.
Summary
- 5SHY6545L0001 — ABB’s high-voltage IGCT module for large-current, high-voltage energy conversion.
- AC10272001R0101 — Companion control/communication board providing multiple interfaces and redundancy, enabling integration with DCS, PLC, or robotic systems.
- 5SXE10-0181 — Low-voltage protection/control module often used together with the above, forming a complete power conversion chain from high-voltage rectification to low-voltage distribution.
