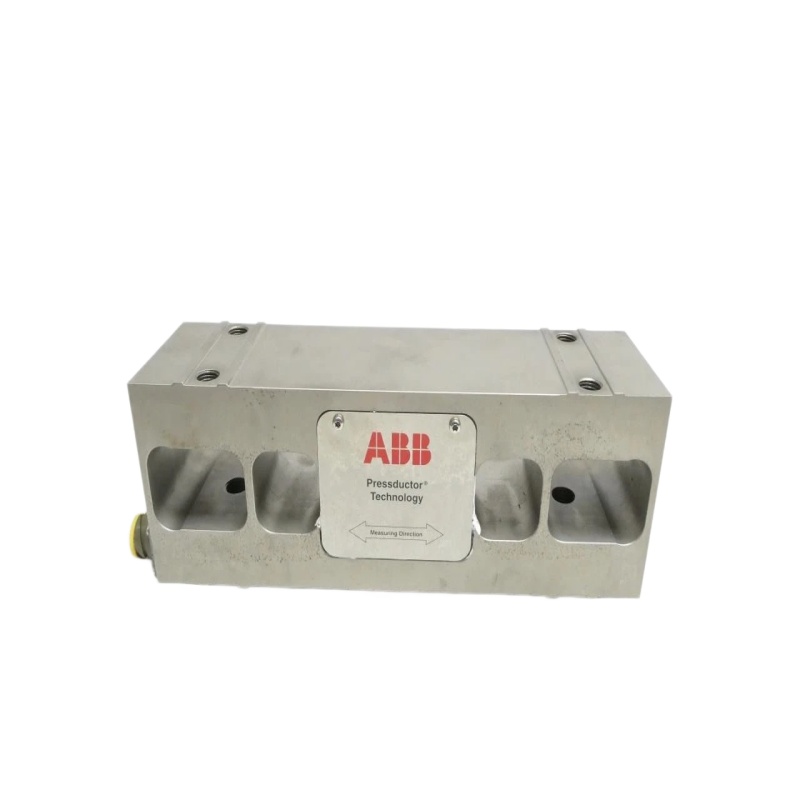

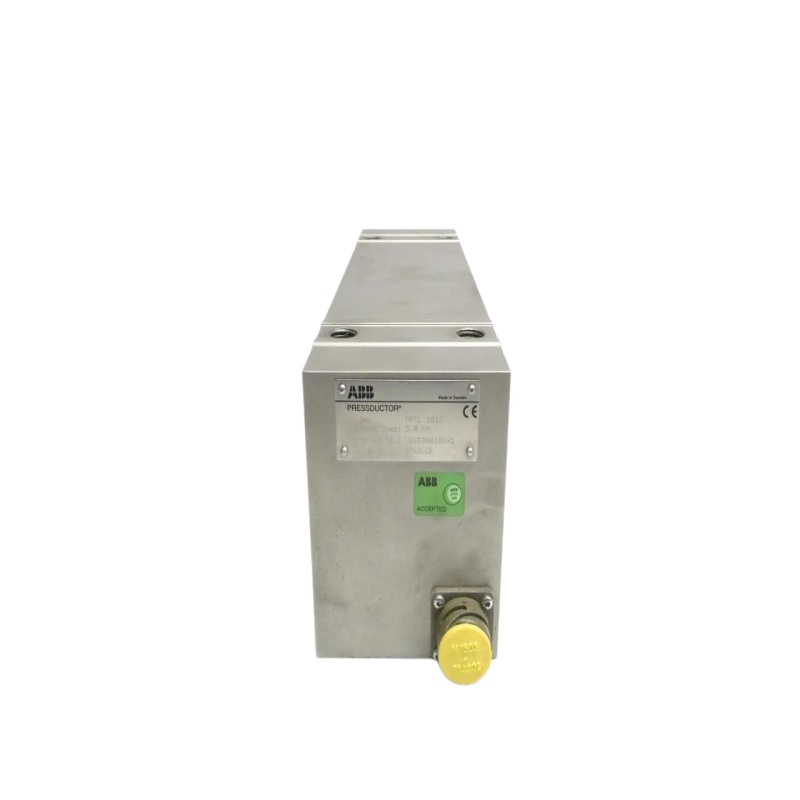

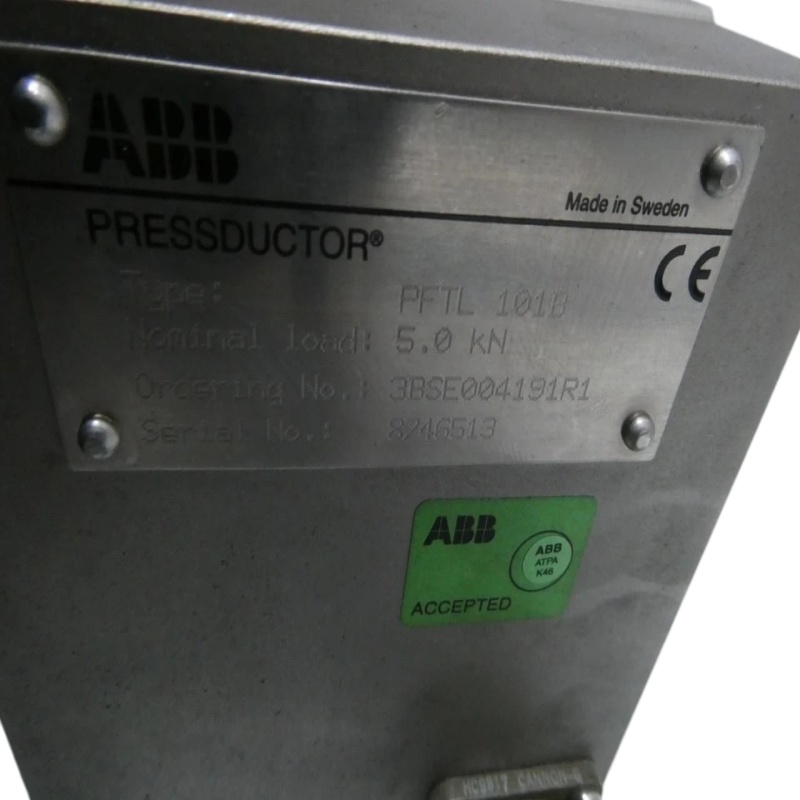

ABB PFTL 101B is a high-precision magnetoelastic pillow block tension sensor from ABB, part of the PFTL series. It is specifically designed to measure horizontal forces and is widely used for web tension control in industries such as papermaking and metal processing.

🔍 Core Technology & Features

• Measuring Principle: Based on the Pressductor® technology (magnetoelastic effect). When the sensor is subjected to force, its magnetic properties change, generating an electrical signal proportional to the force. This technology provides high sensitivity, excellent overload resistance, and high reliability in harsh environments.
• Robust & Durable: Made of high-strength materials such as stainless steel. The ingress protection rating is typically IP66 or higher (some models reach IP67/IP68). It effectively resists rolling mill coolants/emulsions, high heat and humidity in paper machine dryer sections, as well as dust and vibration.
• Accuracy & Speed: Accuracy class up to ±0.5% (some models ±0.25%). It features a very fast dynamic response, with a signal processing loop as fast as 125μs, capturing even minor tension fluctuations in real-time.

⚙️ Product Series & Specifications

The PFTL 101B model includes several sub-models based on rated capacity. The number in the model name (e.g., 2.0, 5.0) indicates the rated load. Key parameters are summarized below:

🛠️ Common Applications

• Papermaking Industry: Used in paper machine dryer sections, calenders, coaters, winders, etc., to precisely control paper web tension and prevent web breaks or wrinkling.
• Metal Processing: Measures and controls strip tension in hot rolling, cold rolling, pickling, galvanizing, and other production lines to ensure uniform sheet thickness and prevent material deformation.
• Other Industries: Also used in rubber, plastics, textiles, printing, packaging, and other industries requiring precise tension control of webs (films, fabrics, cables, etc.).

💡 How to Select & Install

• Selection Notes: The PFTL101B series also has special-environment variants, such as PFTL101BE (mill type, suitable for environments with rolling emulsion) and PFTL101BER (acid-resistant type, suitable for pickling lines). Please confirm your operating conditions when selecting.
• Installation Key Points: Do not drill into designated areas to avoid damaging internal circuits. Also, adapter plates (minimum 35mm thick) must be installed on the top and bottom of the sensor to ensure proper alignment and even load distribution. Cables must be secured firmly to prevent shunt forces caused by thermal expansion/contraction, which could affect measurement accuracy.
