Bently Nevada 106M1079-01 (3500/15 Universal AC Power Supply)

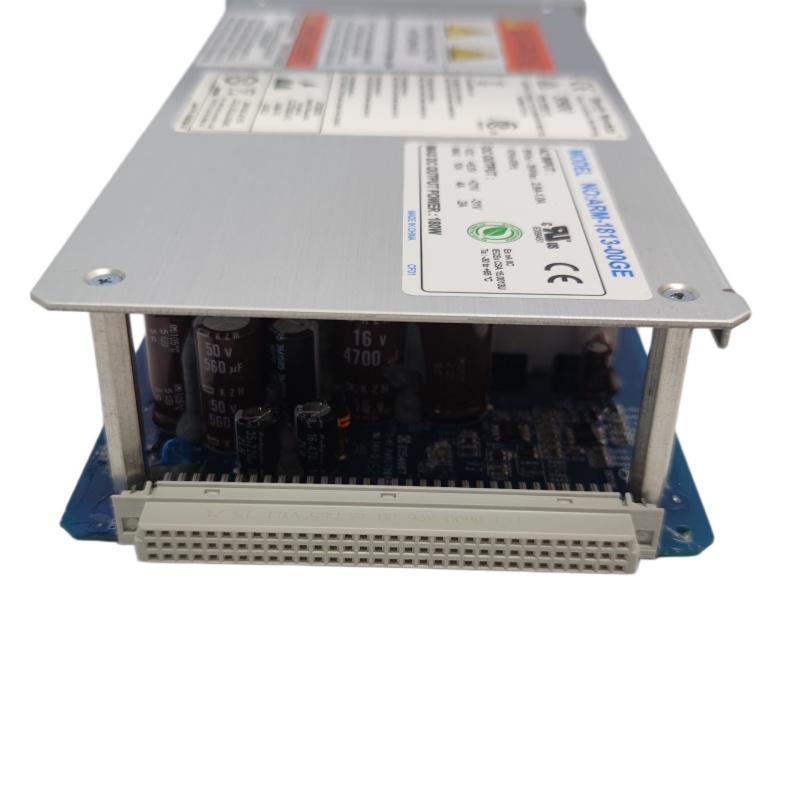

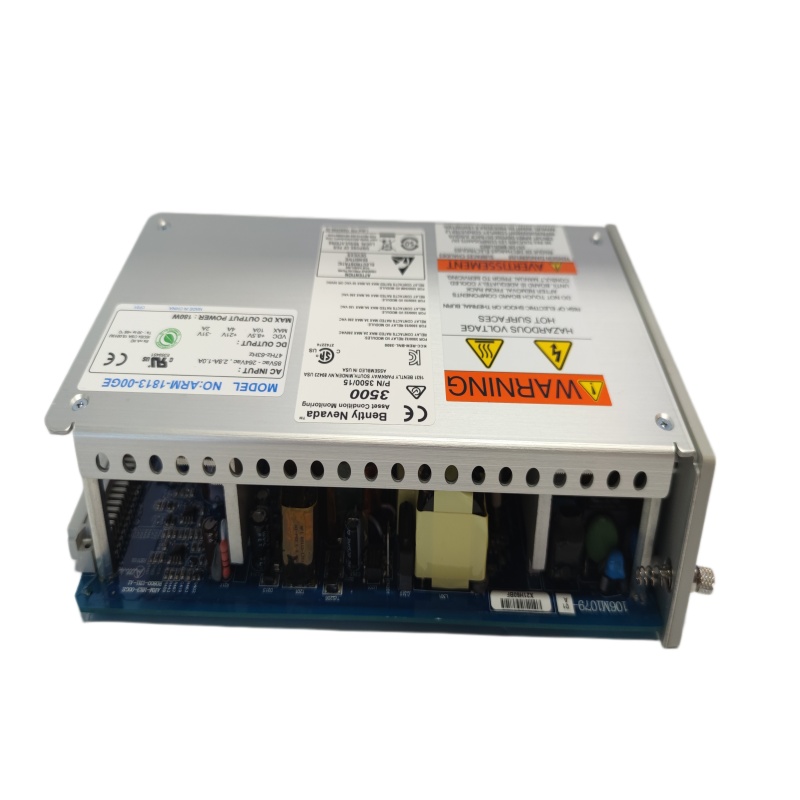

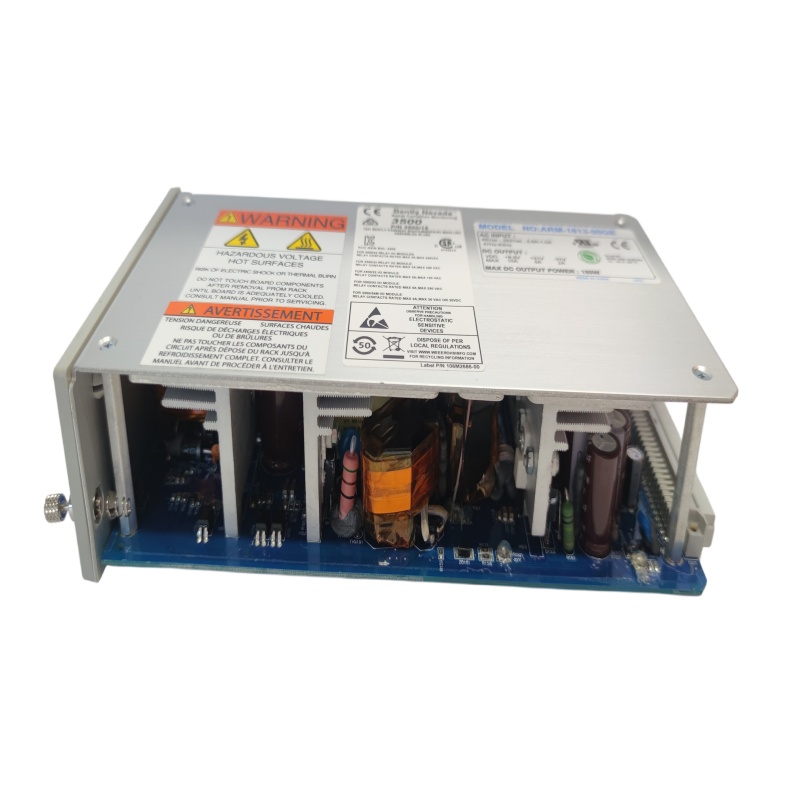

Bently Nevada 3500/15 106M1079-01 Universal AC Power Supply Module
Bently 106M1079-01 is a Universal AC Power Supply Module used in the Bently Nevada 3500 machinery protection / vibration monitoring system. It provides stable DC power for all modules installed in a 3500 rack.
This module is mission-critical in turbine, compressor, generator, and other rotating equipment monitoring systems.
Key Functions
- Converts 85–264 VAC input to regulated DC power for the rack
- Powers the entire 3500 system rack
- Supports redundant power supply configuration
- Designed for industrial and hazardous environments
The rack can hold one or two power supplies:
- Lower slot → Primary supply
- Upper slot → Backup supply
If the primary fails, the backup keeps the system running.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | Bently Nevada 3500/15 |
| Input voltage | 85–264 VAC |
| Frequency | 47–63 Hz |
| Output voltage | 20–30 VDC |
| Output current | Up to 2.5 A |
| Efficiency | ~90% |
| Operating temp | −30°C to +65°C |
| Weight | ~1.3–1.39 kg |
| Certifications | ATEX / IECEx / CSA Class 1 Zone 2 |
Important Compatibility Notes
- Installed on the left side of the 3500 rack
- Works with AC or DC power supply combinations
- Not compatible with legacy high/low-voltage AC PIM units
Typical Applications
Used in industries requiring continuous machine protection:
- Oil & Gas turbines
- Power plants
- Petrochemical compressors
- Large pumps and motors
- Critical rotating machinery monitoring
Summary
The 106M1079-01 is the core power module of the Bently Nevada 3500 monitoring system. Its main value is high reliability, redundancy support, wide AC input, and hazardous-area certification, making it suitable for mission-critical machinery protection.
***************************************************
