GE 269-100P-120

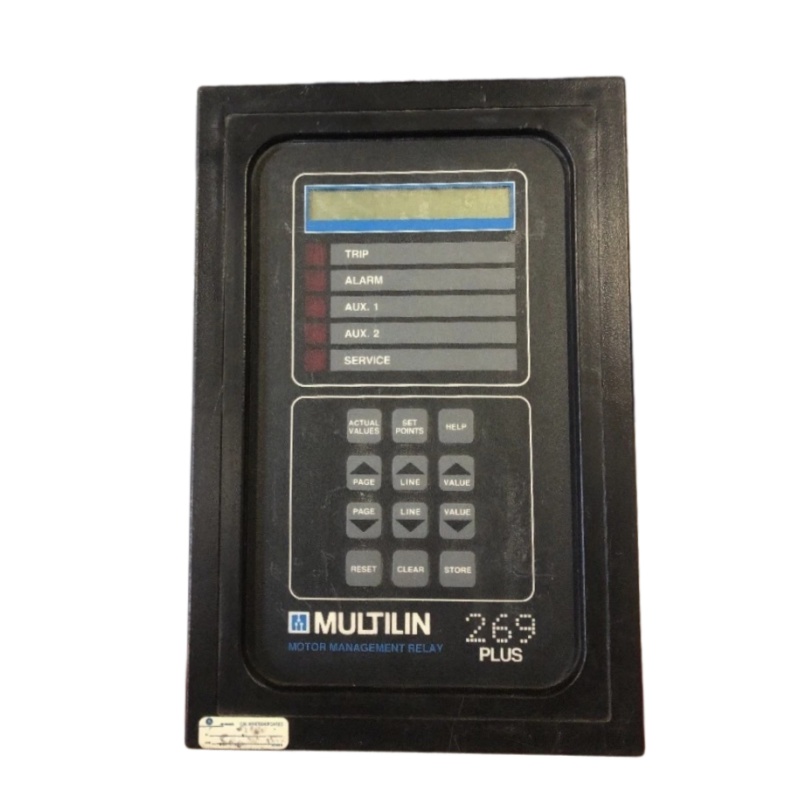

GE Vernova GE Multilin 269-100P-120 is a microprocessor-based Motor Management Relay designed for comprehensive protection, monitoring, and control of medium-sized three-phase AC motors. It belongs to the GE Multilin 269 Plus motor protection family and integrates motor protection functions, measurement, alarms, and communication capabilities in one device.

Product Model

Manufacturer: GE Multilin / GE Vernova
Model: 269-100P-120
Product Type: Motor Protection & Management Relay
Series: 269 Plus Motor Management Relay
Application: Industrial motor protection systems

Technical Description

The GE 269-100P-120 provides advanced protection for AC motors by continuously monitoring electrical and thermal operating conditions. It uses microprocessor technology to detect abnormal motor conditions and initiate alarms or trips to prevent equipment damage.

Main Features

Complete motor protection and control functions
Microprocessor-based monitoring system
LCD display with keypad configuration
RS-485 communication interface with Modbus RTU protocol
Programmable protection settings
Continuous self-diagnostic function
Field upgrade capability

Protection Functions

Thermal overload protection
Overtemperature protection
Stator winding temperature monitoring
Bearing temperature monitoring
Locked rotor protection
Mechanical jam detection
Short-circuit protection
Ground fault protection
Phase unbalance protection
Single phasing protection
Undercurrent protection
Multiple start protection
Emergency restart function

Input / Output Configuration

Digital Inputs: 5 factory-programmed inputs
Relay Outputs: 4 output relays
Auxiliary Relays: 2 programmable auxiliary relays
Analog Output: 1 programmable analog output
RTD Inputs: Supports up to 8 RTD temperature inputs
RTD Type: 100 Ω Platinum RTD (for this model variant)

Power Supply

Control Voltage: 120 VAC
Model Code: 269-100P-120 indicates the 120 V control power version

Application Range

GE Multilin 269-100P-120 is widely used in industries requiring reliable motor protection and condition monitoring, including:

Oil & gas facilities
Power generation plants
Water treatment systems
Mining equipment
Chemical processing plants
Steel and manufacturing industries
Pumps, fans, compressors, and conveyors

Advantages

Protects expensive motors from thermal and electrical damage
Reduces downtime through early fault detection
Provides detailed motor operating data
Improves maintenance efficiency
Integrates easily into industrial control systems through Modbus communication

Conclusion

The GE Multilin 269-100P-120 Motor Management Relay is a reliable and versatile protection device for industrial motor applications. With comprehensive protection functions, RTD temperature monitoring, communication capability, and programmable control features, it provides an effective solution for safeguarding critical motor-driven equipment. The 269 series is now considered a legacy product line, with newer alternatives such as the GE Multilin 859 relay recommended for new applications.
