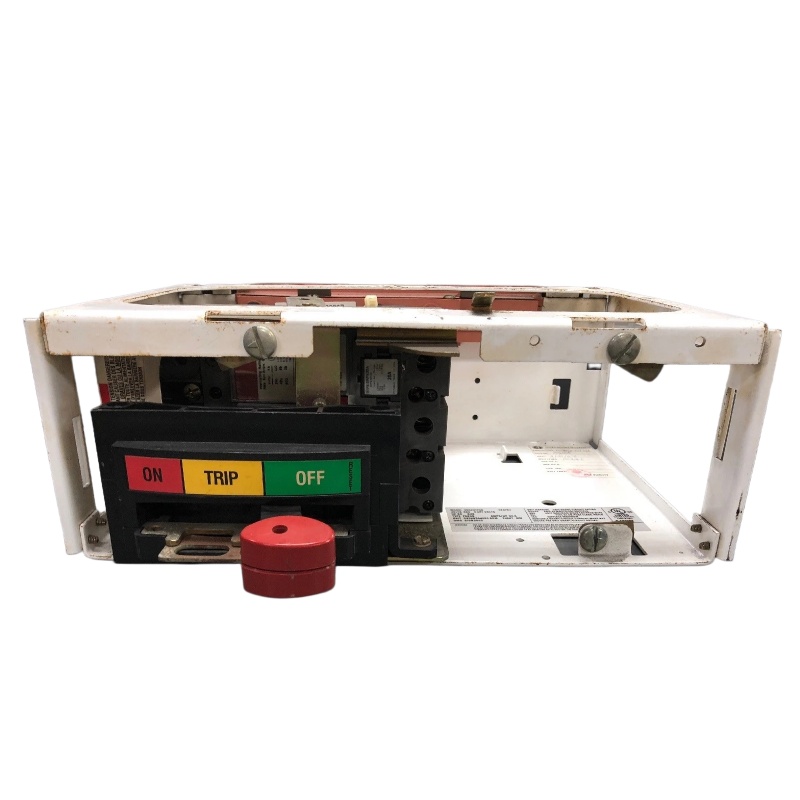

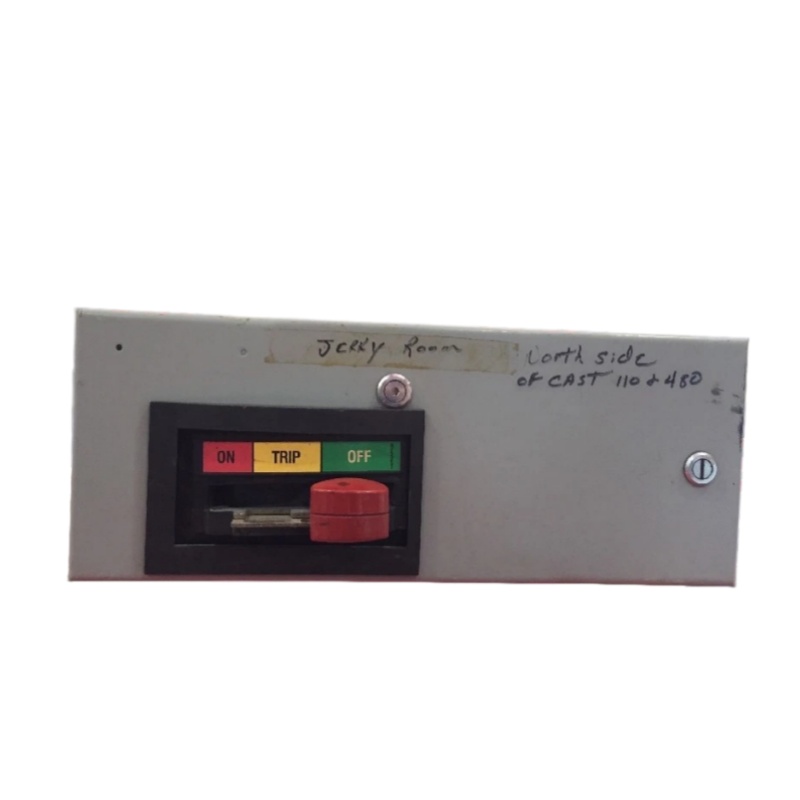

GE E9000 SELA36AT0030
The GE SELA36AT0030 is a Spectra RMS™ molded case circuit breaker (MCCB) designed for power distribution and feeder protection applications. It is commonly used in GE E9000 switchgear systems as a feeder/bucket circuit protection component.
Product Description
- Manufacturer: General Electric (GE)
- Product Series: Spectra RMS™ / SELA Series
- Model: SELA36AT0030
- Device Type: Molded Case Circuit Breaker (MCCB)
- Frame Type: SE150
- Poles: 3-Pole
- Rated Current: 30 A
- Rated Voltage: 600 VAC maximum
- Frequency: 50/60 Hz
- Mounting Type: Bolt-on connection
- Trip Unit: Electronic solid-state RMS sensing trip system
- Trip Function: LSI (Long Time, Short Time, Instantaneous) protection
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Series | GE Spectra RMS |
| Frame Size | SE150 |
| Continuous Current Rating | 30 A |
| Number of Poles | 3P |
| Voltage Rating | 600 VAC |
| Interrupting Capacity | 100 kA @ 240 VAC / 65 kA @ 480 VAC / 25 kA @ 600 VAC |
| Trip Technology | Digital Solid-State RMS Trip |
| Protection | Overload, Short Circuit, LSI |
| Connection | Bolt-On |
| Application | Feeder and distribution protection |
Features
- Digital RMS sensing technology for accurate protection of both sinusoidal and non-sinusoidal currents.
- Adjustable protection settings with electronic trip functions.
- High interrupting capability suitable for industrial power distribution environments.
- Compact Spectra design for integration into GE switchgear and MCC systems.
- Supports reliable protection against overload and short-circuit faults.
Application Range
GE SELA36AT0030 is suitable for:
- GE E9000 motor control centers (MCC)
- Industrial feeder protection
- Power distribution panels
- Manufacturing facilities
- Process automation plants
- Electrical switchgear systems
- Commercial and industrial power networks
Conclusion
The GE SELA36AT0030 is a reliable 30A, 3-pole, 600VAC Spectra RMS electronic MCCB designed for industrial power distribution applications. With its solid-state RMS trip technology, LSI protection, and high interrupting rating, it provides dependable circuit protection for GE E9000 and related electrical distribution systems.
