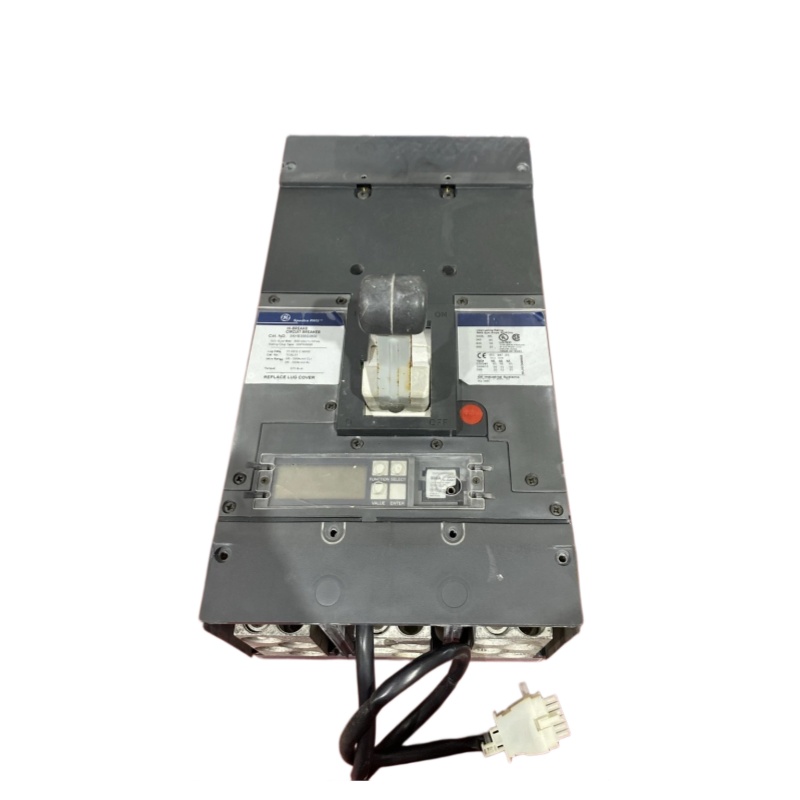

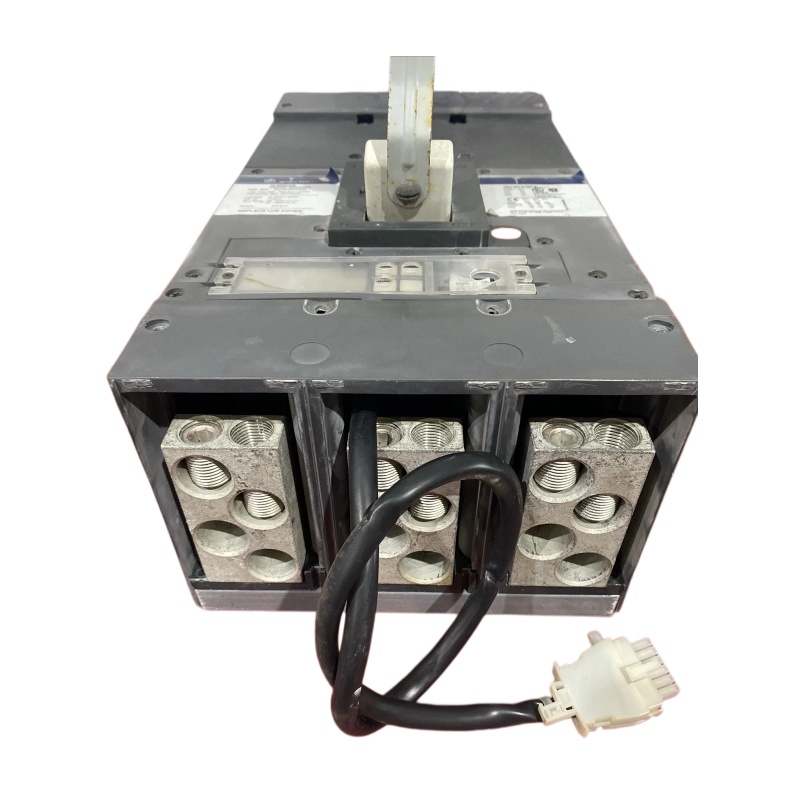

GE SKHB36BD0800 Circuit Breaker

GE (General Electric) SKHB36BD0800 is a Spectra RMS™ molded case circuit breaker (MCCB) designed for industrial power distribution and protection applications. It belongs to the GE SKHB series K-frame circuit breakers and provides high-capacity overcurrent protection for low-voltage electrical systems.

Technical Specifications

Product Description

The GE SKHB36BD0800 is an 800 amp, 3-pole, 600V AC molded case circuit breaker featuring an electronic trip system for advanced circuit protection. It is designed to protect electrical equipment from overloads, short circuits, and ground faults in industrial and commercial power systems.

The LSIGT protection configuration provides adjustable protection settings, allowing engineers to optimize coordination between upstream and downstream protective devices.

Main Features

• High current capacity: up to 800A continuous current rating
• Compact K-frame MCCB design
• 600 VAC rated insulation system
• Electronic MicroVersaTrip protection technology
• Adjustable long-time, short-time, instantaneous, and ground-fault protection
• Suitable for high-performance industrial distribution systems
• Reliable protection for motors, transformers, generators, and switchgear assemblies

Applications

GE SKHB36BD0800 circuit breakers are commonly used in:

• Industrial power distribution panels
• Motor control centers (MCC)
• Generator protection systems
• Transformer secondary protection
• Manufacturing plants
• Oil & gas facilities
• Power generation systems
• Large commercial electrical installations

Conclusion

The GE SKHB36BD0800 is a heavy-duty industrial MCCB providing reliable protection for high-current electrical systems. With its 800A rating, 600VAC capability, 3-pole configuration, and MicroVersaTrip LSIGT electronic protection, it is suitable for demanding applications requiring precise fault protection and system coordination.
