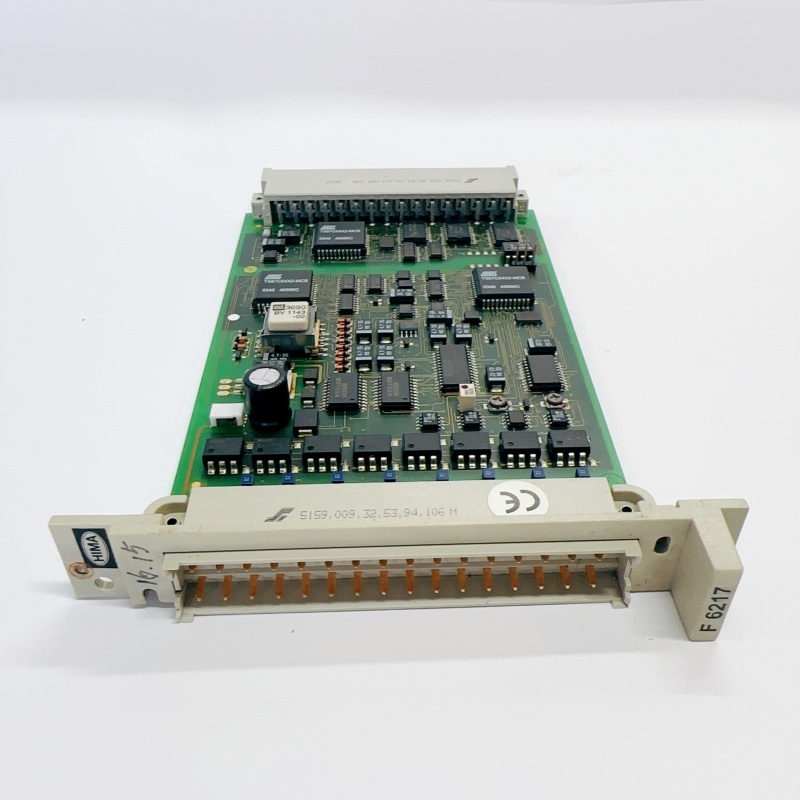

HIMA F6217 Safety Analog Input Module

HIMA F6217 Overview

Model: F6217
Type: Safety Analog Input Module (AI Module)
System: HIMA HIMax / Safety Instrumented System (SIS)
Safety Level: SIL3 (IEC 61508)

The HIMA F6217 is a safety-related analog input module used in Safety Instrumented Systems (SIS). It collects continuous process signals from field instruments and converts them into digital data for safety control and emergency shutdown logic.

Key Functions

1) Data Acquisition for Safety Instrumented Systems

The F6217 receives analog signals from field devices such as:

• Temperature transmitters
• Pressure transmitters
• Flow meters
• Level transmitters

These signals are transmitted to the safety controller for safety logic execution.

2) SIL3 Functional Safety Certification

The module complies with major functional safety standards:

• IEC 61508
• IEC 61511
• SIL3 safety integrity level

This makes it suitable for high-risk industrial environments.

3) High Reliability and Self-Diagnostics

Typical reliability features include:

• Built-in self-diagnostics
• Fault detection and alarm reporting
• Support for redundant architectures
• Increased system availability and safety

Main Technical Specifications

Key Features

High-precision measurement
Uses high-accuracy ADC technology for reliable signal acquisition.

Multi-channel design
Eight inputs enable simultaneous monitoring of multiple critical process parameters.

Fast response
Supports high-speed sampling for real-time process monitoring.

Strong noise immunity
Built-in isolation, filtering, and signal conditioning improve stability in harsh environments.

Typical Applications

The F6217 is widely used in high-risk continuous process industries:

Oil & Gas

• Emergency Shutdown Systems (ESD)
• Fire & Gas (F&G) systems

Chemical Industry

• Reactor safety monitoring
• Interlock protection

Power Generation

• Boiler protection systems
• Gas turbine safety protection

Pharmaceutical, Metallurgy, Energy

• Critical process monitoring and protection
