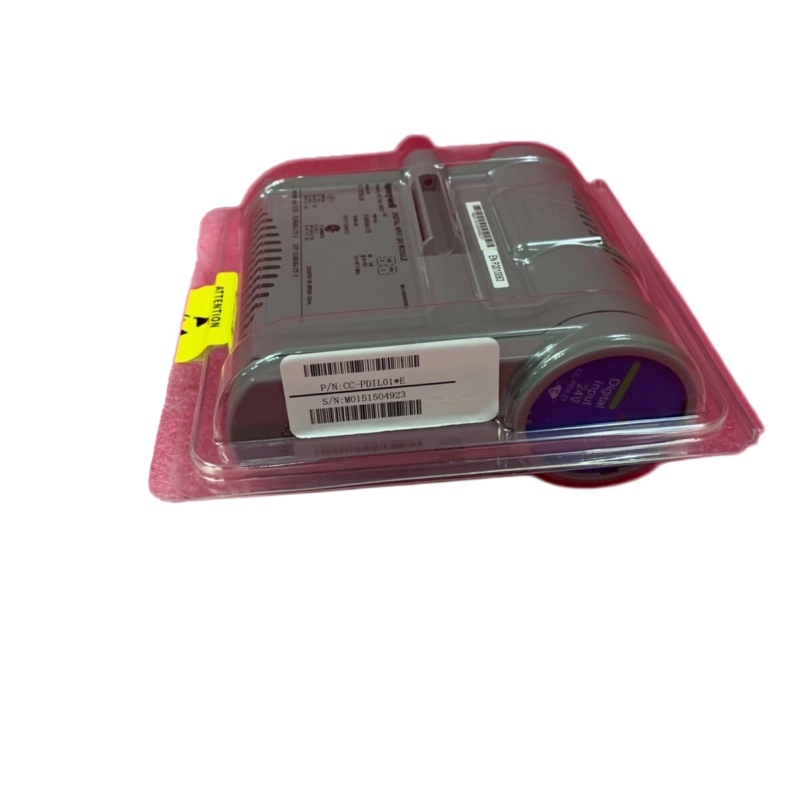

Honeywell CC-PDIL01 51405040-176
Honeywell CC-PDIL01 (Part No. 51405040-176) – Technical Specifications
The CC-PDIL01 51405040-176 is a 24 VDC digital input module used in Honeywell Experion / Series-C I/O control systems, typically connected to C200 or C300 controllers for monitoring discrete field signals such as switches, sensors, and status contacts.
1. General Information
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | CC-PDIL01 |
| Part Number | 51405040-176 |
| Module Type | Digital Input Module |
| Application | Experion PKS / Series-C I/O systems |
| Country of Origin | USA |
2. Input Characteristics
| Parameter | Specification |
|---|---|
| Input Type | Digital (Discrete) |
| Number of Channels | 32 inputs |
| Nominal Input Voltage | 24 VDC |
| DI Power Voltage Range | 18 – 30 VDC |
| ON Sense Voltage / Current | ≥13 VDC or ≥3 mA |
| OFF Sense Voltage / Current | ≤5 VDC or ≤1.2 mA |
| Input Impedance | ~4.2 kΩ |
| Field Resistance (ON) | ≤300 Ω @ 15 VDC |
| Field Resistance (OFF) | ≥30 kΩ @ 30 VDC |
| Input Filter Delay | 5 ms ±20% |
3. Isolation & Protection
| Parameter | Specification |
|---|---|
| Isolation Type | Optical isolation |
| Galvanic Isolation | 1500 VAC RMS or ±1500 VDC |
| Open-Wire Detection | Supported |
| Diagnostics | Internal diagnostics for signal integrity |
4. Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | −20 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5% – 95% (non-condensing) |
5. Physical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 19.1 × 18.8 × 6.5 cm |
| Weight | ~0.4 kg |
| Certifications | CE, RoHS |
6. Key Features
- Accepts 24 VDC discrete signals from field devices.
- Galvanic isolation improves system safety and signal reliability.
- Open-wire detection prevents false process values.
- Supports internal or external field power selection.
- Designed for Honeywell Series-C I/O termination assemblies (IOTA).
✅ Typical Applications
- Industrial process control
- Oil & gas plants
- Chemical and petrochemical facilities
- Power generation automation
- Distributed Control Systems (DCS)
