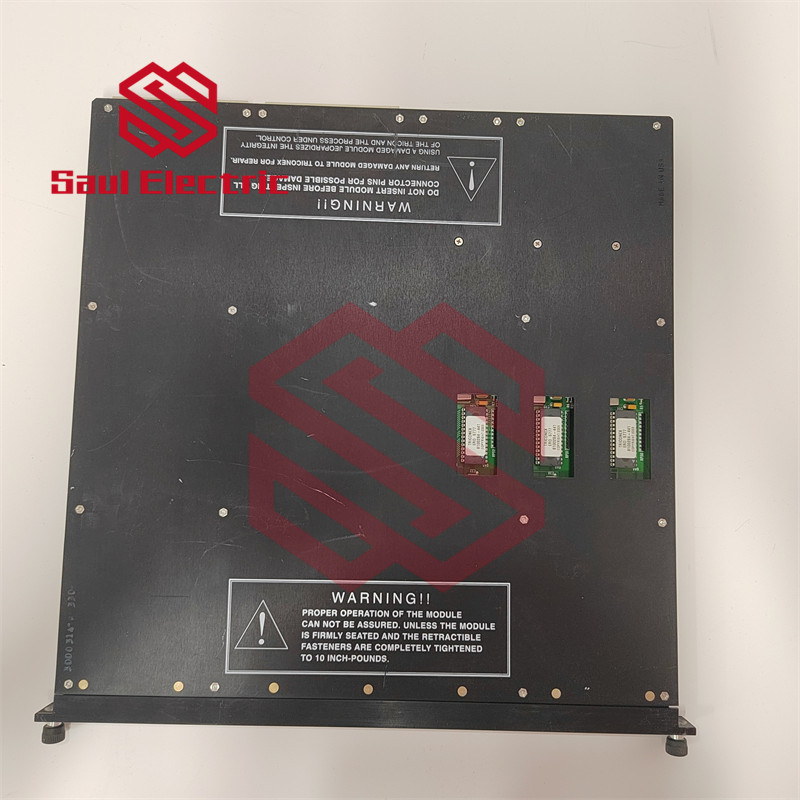

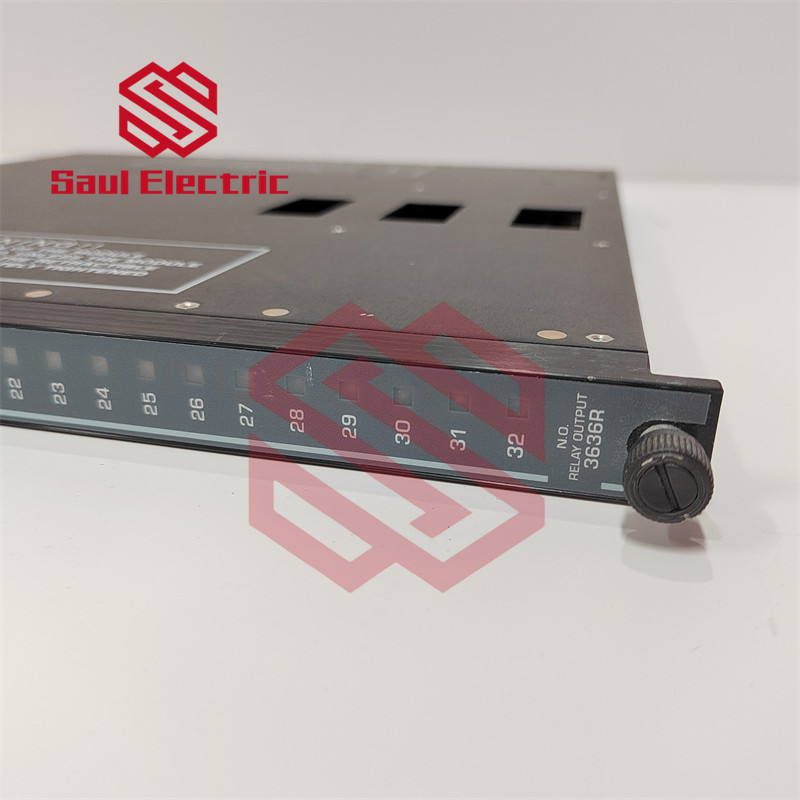

TRICONEX 3636R critical module

The Triconex 3636R is a critical module in the Triconex Safety Instrumented System (SIS) by Schneider Electric, designed for high-integrity safety applications. Below are its key technical parameters:

General Specifications:

• Model: 3636R (Redundant Module)
• Manufacturer: Triconex (Schneider Electric)
• System: Triple Modular Redundant (TMR) Safety System
• Function: Digital Input/Output or Communication Module (exact role depends on configuration)

Electrical Specifications:

• Supply Voltage: Typically 24V DC (range may vary, e.g., 18–32V DC)
• Power Consumption: Depends on configuration (usually <10W)
• Isolation: High-voltage isolation for noise immunity

I/O Specifications (if applicable):

• Input Channels: Configurable as digital inputs (e.g., 16/32 channels)
• Output Channels: Configurable as digital outputs (relay or transistor-based)
• Signal Type: Dry contact, 24V DC, or other industrial standards
• Response Time: <10 ms (typical for safety systems)

Communication & Redundancy:

• Redundancy: Supports TMR (Triple Modular Redundancy) for fault tolerance
• Communication Protocols:
  • Triconex Bus (for internal communication)
  • May support Modbus TCP/IP, OPC, or Ethernet/IP (varies by firmware)

Environmental Ratings:

• Operating Temperature: -40°C to +70°C (industrial grade)
• Humidity: 5–95% non-condensing
• Certifications: ATEX, IEC 61508 (SIL 3), ISO 13849 (PL e)

Physical Dimensions:

• Form Factor: Standard 19″ rack-mountable or standalone
• Weight: ~2–5 kg (depends on configuration)

Safety & Compliance:

• Safety Integrity Level (SIL): SIL 3 (IEC 61508)
• Fault Tolerance: TMR architecture (2-out-of-3 voting)
• MTBF (Mean Time Between Failures): >100,000 hours

Typical Applications:

• Emergency Shutdown Systems (ESD)
• Fire & Gas Detection Systems
• Turbine Control (TMR Protection)
• Process Safety in Oil & Gas, Chemical, Power Plants
