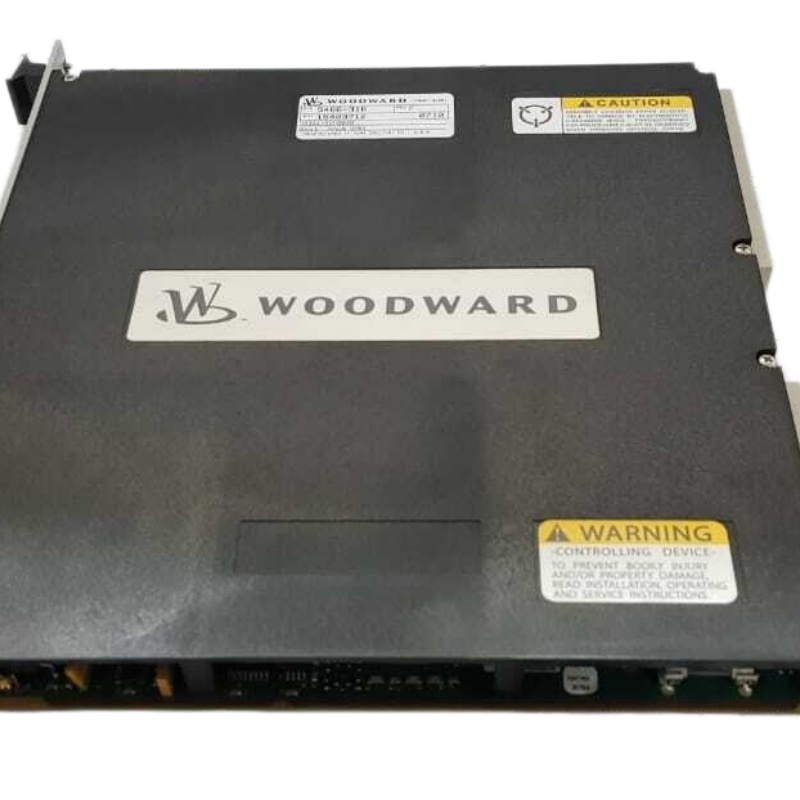

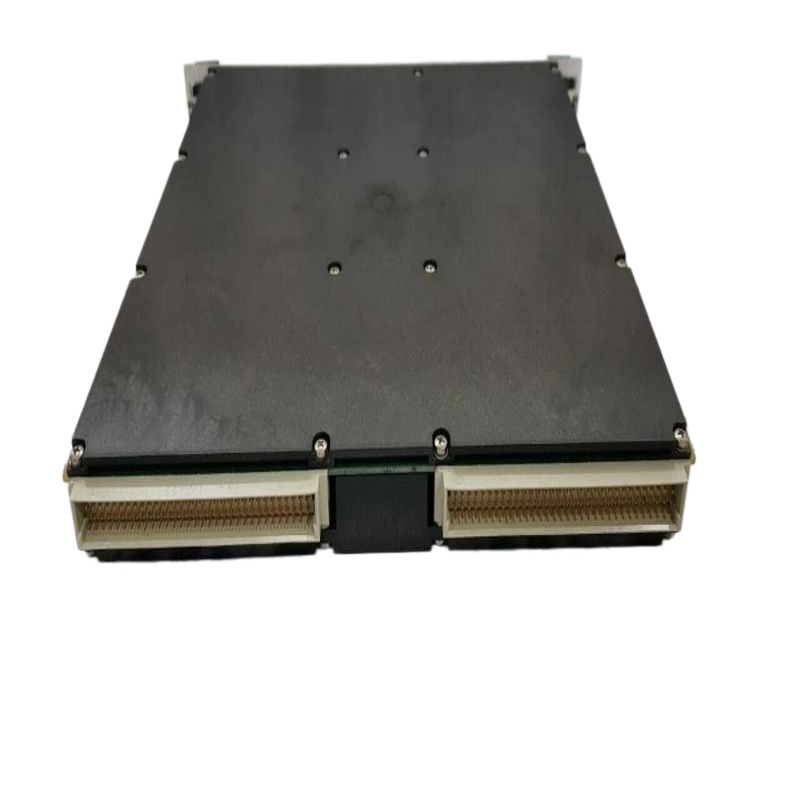

Woodward 5466-316 – Overview

The Woodward 5466-316 is a high-density Analog Combo Module used in Woodward MicroNet turbine control systems. It is mainly designed for steam turbine and compressor control applications, especially in industrial power generation and process automation environments.

Key Features

8 analog inputs
4 analog outputs
4 speed sensor inputs
2 proportional actuator outputs
Supports magnetic pickup (MPU) and proximity probe speed sensing
Compatible with Woodward MicroNet and 5009 turbine control systems
Designed for retrofit, spare, and upgrade applications

Functional Description

The 5466-316 HDCombo module combines analog signal processing and speed sensing into a single module. It can process:

4–20 mA analog input signals
Turbine speed feedback signals
Actuator control outputs
Proportional valve control signals

It is commonly used in:

Steam turbine control systems
Gas compressor control
Generator governor systems
Industrial automation and process control

Technical Specifications

Parameter	Specification
Manufacturer	Woodward
Model	5466-316
Product Type	Analog Combo / HDCombo Module
Power Supply	24 VDC nominal
Analog Inputs	8
Analog Outputs	4
Speed Inputs	4
Actuator Outputs	2
Operating Temperature	-25°C to +70°C (typical)
Application	MicroNet turbine control systems
Origin	USA

Important Notes

According to Woodward product change notifications, the 5466-316 is considered a legacy HDCombo module. Woodward now recommends newer replacement architectures such as the 5466-1115 combined with separate actuator modules for many new installations. However, the 5466-316 is still widely used for:

system retrofits
spare parts replacement
existing MicroNet installations

Typical Applications

Steam turbine governor systems
Compressor anti-surge systems
Power plant control
Oil & gas turbine automation
Industrial rotating equipment monitoring
