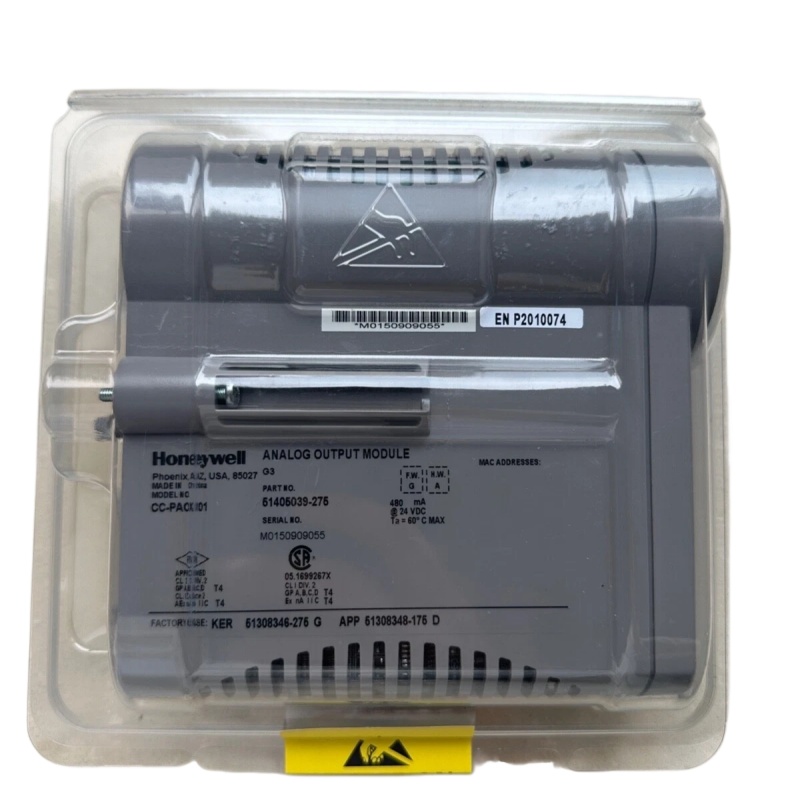

The Honeywell 51405039-275 (hardware code CC-PAOX01) is an analog output module used in Honeywell Experion PKS and Honeywell TPS (TotalPlant Solution) distributed control systems (DCS). It converts digital control signals from the controller into analog current outputs to drive field devices such as control valves, actuators, and variable-frequency drives.

Honeywell 51405039-275 Technical Specifications

General Information

• Manufacturer: Honeywell
• Part Number: 51405039-275
• Hardware Code: CC-PAOX01
• Module Type: Analog Output (AO) module
• System Compatibility: Experion PKS / TPS DCS
• Country of Origin: United States

Output Specifications

• Number of Channels: 8 independent analog output channels
• Output Signal: 4–20 mA current loop (per channel)
• Maximum Load: up to 800 Ω @ 20 mA
• Resolution: approx. 16-bit (typical)
• Output Ripple: <100 mV peak-to-peak across 250 Ω load
• Linearity: ±0.05% of full scale (nominal)
• Calibrated Accuracy: ±0.35% of full scale at 25 °C
• Temperature Drift: 0.005% FS/°C

Electrical & Communication

• Supply Voltage: 24 VDC (typical system supply)
• Isolation:
  • Channel-to-channel isolation
  • Channel-to-system isolation
• Diagnostic Functions:
  • Output read-back monitoring
  • Open-wire / fault detection
  • LED status indicators

Environmental Specifications

• Operating Temperature: −40 °C to +85 °C (typical industrial range)
• Humidity: 5–95% RH (non-condensing)
• Protection Rating: IP20

Mechanical Specifications

• Dimensions: approx. 8.3 × 10.2 × 11.2 cm
• Weight: approx. 0.3–0.9 kg depending on configuration

Key Features

• Converts digital control signals into precise analog outputs for field devices.
• Supports high-accuracy process control loops.
• Hot-swappable module for maintenance without shutting down the system.
• Supports redundant configurations for high-reliability process control.
• Provides diagnostics and LED status indicators for easy troubleshooting.

✅ Typical Applications

• Distributed Control Systems (DCS)
• Process industries (oil & gas, chemical, power plants)
• Control of valves, drives, and actuators
• Industrial automation and process regulation
