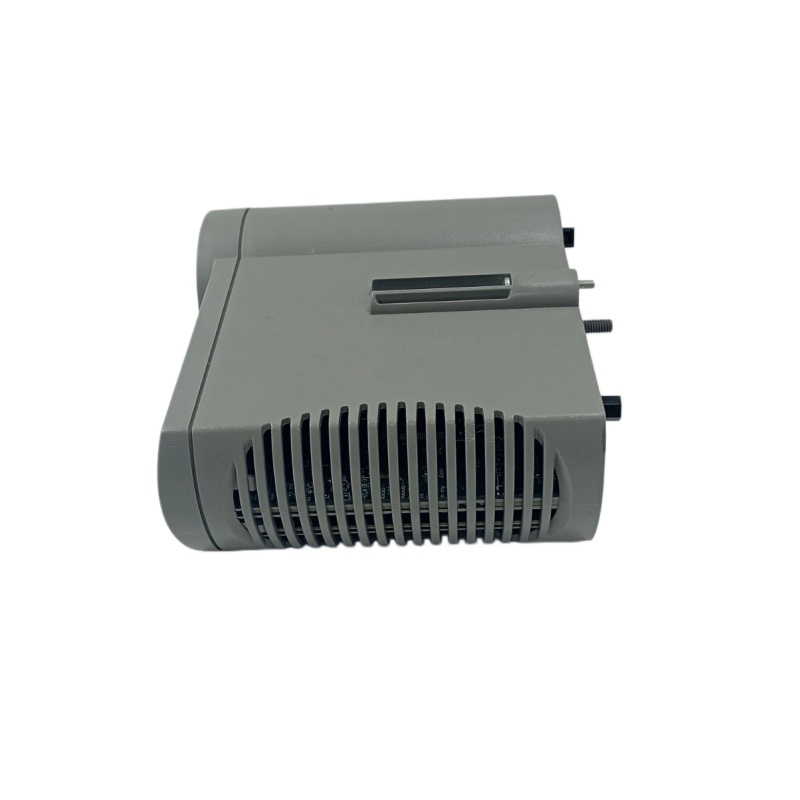

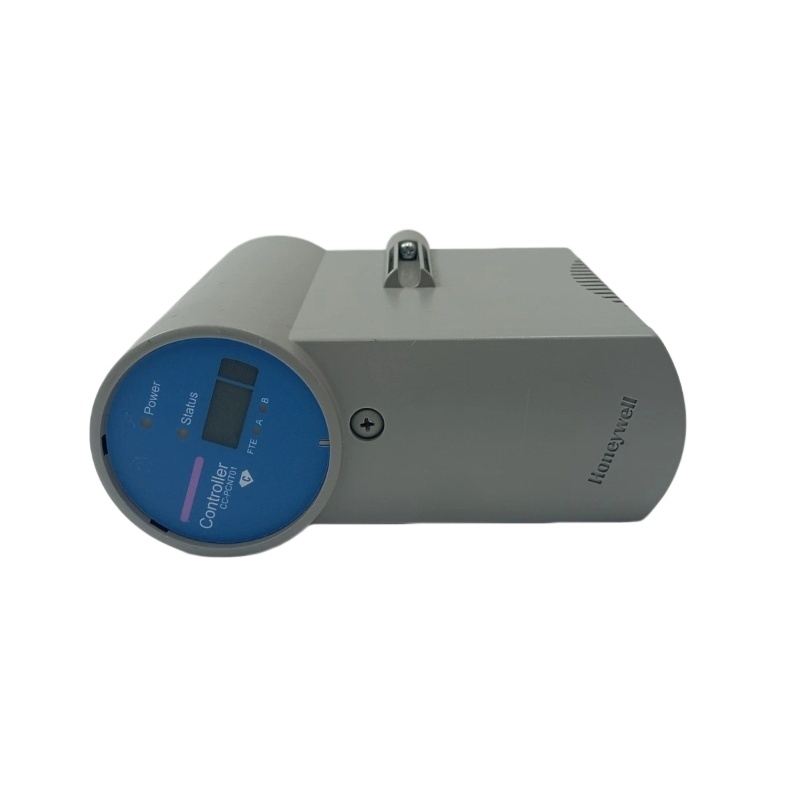

The Honeywell CC‑PCNT01 C300 Controller Module (Part No. 51405046-175) is a processor/controller module used in the Honeywell Experion PKS distributed control system. It executes control strategies, manages I/O communication, and provides deterministic real-time control for industrial automation processes.

Below are the key technical specifications.

Honeywell CC-PCNT01 C300 – Technical Specifications

1. General Information

• Manufacturer: Honeywell
• Model Number: CC-PCNT01
• Part Number: 51405046-175
• Product Type: C300 Controller / Processor Module
• System Platform: Experion PKS (Series C architecture)
• Mounting: Input Output Termination Assembly (IOTA)

2. Electrical Specifications

• Supply Voltage: 24 VDC
• Input Voltage Range: 8–30 VDC
• Current Consumption: ~320 mA (≈0.311 A typical)
• Output Current: 10 mA

3. Performance Specifications

• Base Execution Period:
  • 50 ms (standard)
  • 20 ms (optional)
• I/O Links Supported: 2
• I/O Link Speeds:
  • 375 Kbaud (PM I/O link)
  • 750 Kbaud (Series C I/O link)
• Device Index Range: 1–510
• Counting Range: 1–999999
• Resolution: 1 pulse
• Frequency Range: 1–100 kHz
• Input Impedance: 100 kΩ

4. Communication & Control

• Network: Fault Tolerant Ethernet (FTE)
• Control Execution: Honeywell Control Execution Environment (CEE)
• Remote I/O Support:
  • PM I/O
  • Series A I/O
  • Series C I/O
• Redundancy: Supports redundant controller configurations

5. Environmental Specifications

• Operating Temperature: –40°C to +70°C
• Humidity: Up to 95% non-condensing
• Industrial Protection: Designed for harsh industrial environments

6. Physical Specifications

• Dimensions:
  • 6.8 × 16.2 × 16.5 cm (approx.)
• IOTA Size: 6-inch mounting format
• Weight: ~0.48 kg (≈1.06 lb)

7. Key Features

• Deterministic real-time control execution
• High-reliability distributed control architecture
• Supports redundant controller configurations
• Hot-swappable in some system configurations
• Seamless integration with Series C I/O modules

✅ Typical Applications

• Oil & gas processing plants
• Power generation systems
• Chemical and petrochemical plants
• Large-scale process automation using Experion PKS
•
