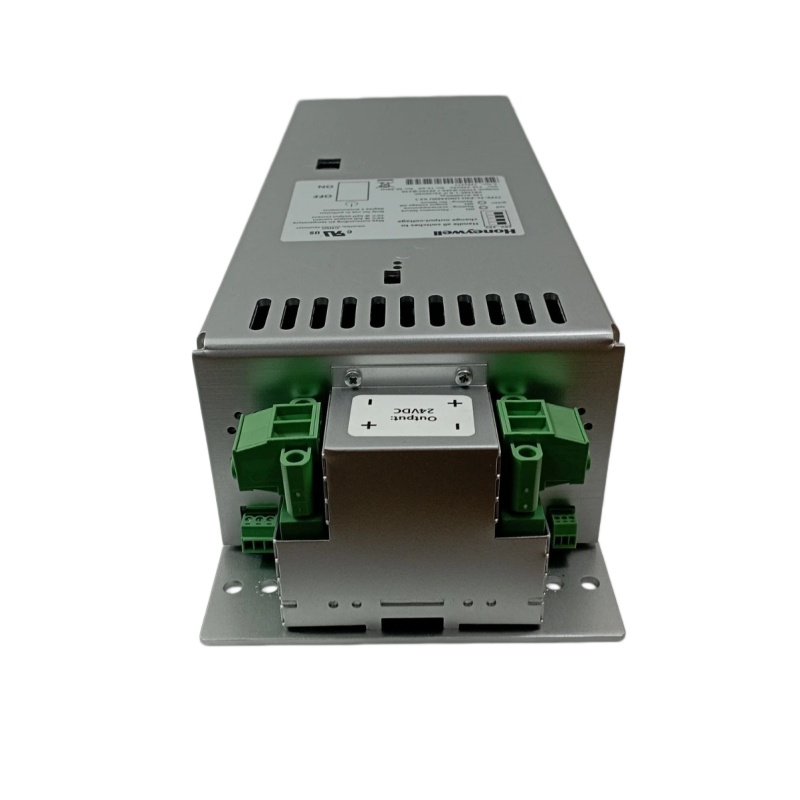

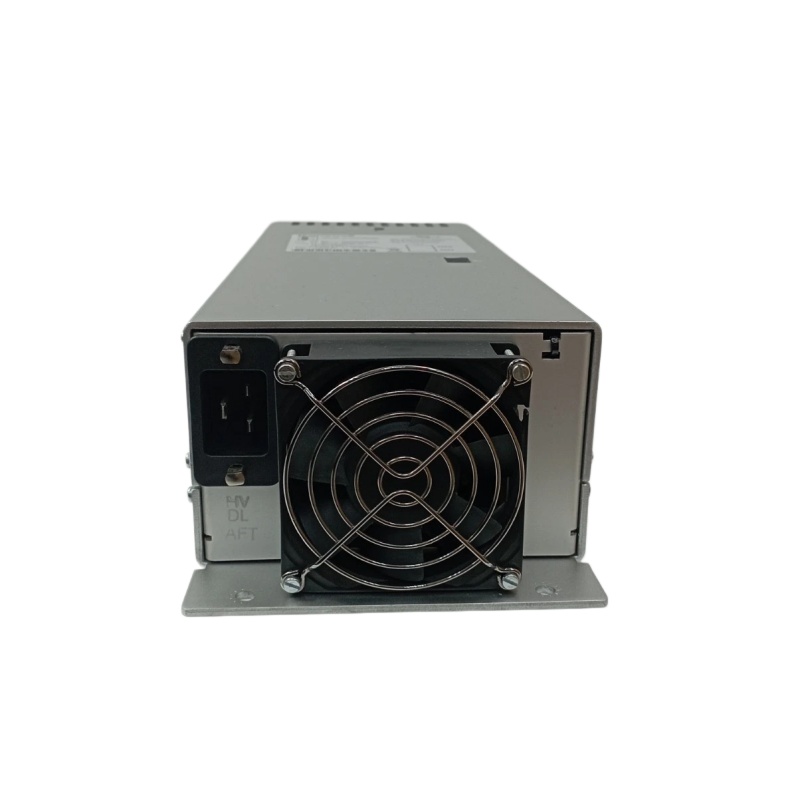

Honeywell FC-PSU-UNI2450U
The Honeywell FC-PSU-UNI2450U is a universal industrial power supply unit (PSU) used in Honeywell control systems such as Safety Manager and Experion PKS. It converts AC input power into a stable high-current DC supply for control modules and I/O systems.
Below are the main technical specifications.
1. General Specifications
- Manufacturer: Honeywell
- Product type: Universal Power Supply Unit (PSU)
- Model: FC-PSU-UNI2450U
- Typical applications: Honeywell Safety Manager, Experion PKS, industrial automation systems.
2. Input Specifications
- Input voltage: 110–240 VAC (operating range 93–253 VAC)
- Input frequency: 47–63 Hz
- Inrush current: < 15 A
- Power consumption (no load): ~13 W
- Power factor: close to 1.
3. Output Specifications
- Output voltage:
- 25 VDC (default)
- 28 VDC selectable
- Output current:
- 48 A at 25 VDC
- 43 A at 28 VDC
- Maximum output current: up to ~50 A
- Ripple & noise: < 40 mVpp
- Hold-up time: 100 ms at full load
- Efficiency:
- 87% at 230 VAC
- 80–85% at lower AC input.
4. Protection & Safety
- Dual over-voltage protection
- Over-current protection
- Short-circuit protection
- Over-temperature monitoring
- Fan alarm monitoring.
5. Isolation
- Input → Output: 3750 Vrms
- Input → Case: 2500 Vrms
- Output → Case: 500 VDC.
6. Environmental Specifications
- Operating temperature: −5 °C to +70 °C
- Storage temperature: −25 °C to +85 °C
- Humidity: up to 95% (non-condensing).
7. Mechanical Specifications
- Dimensions: 420.5 × 140 × 90 mm
- Weight: ~5.7 kg
- Mounting: cabinet installation with industrial connectors.
✅ Key features
- High-current 24/25 V industrial power supply
- Supports redundant power configuration for high-availability systems
- Designed for safety-critical automation and DCS environments
- Built-in diagnostic indicators and alarm contacts.
